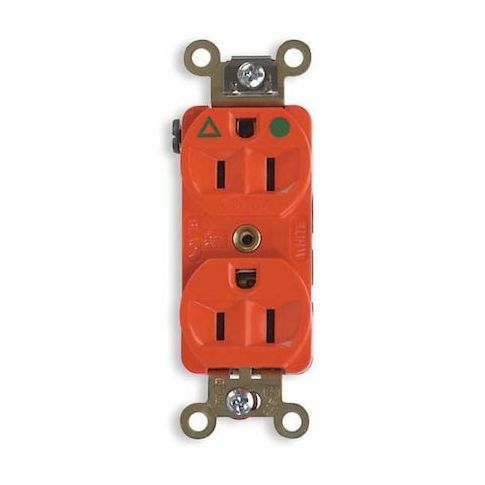

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG5362I
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a commercial-grade electrical solution designed for heavy-duty applications in industrial and commercial settings. This specification-grade receptacle features an isolated ground design, providing dedicated grounding paths for safe and reliable operation. With its robust construction and high amperage rating, it can handle demanding electrical loads with ease. Ideal for use in offices, factories, and other high-traffic areas, this receptacle is UL Listed and CSA Certified for added peace of mind. Its versatility and reliability make it an excellent choice for a wide range of applications, including lighting, HVAC, and data centers.
Top product features:
- Isolated ground design for dedicated grounding paths
- Accommodates both back and side wiring with screw terminals
- Supports #12-#10 AWG stranded or solid copper wire
Top product applications:
- Commercial and industrial applications
- Residential applications with high power requirements
- Heavy-duty equipment installations
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a Specification grade duplex receptacle rated for commercial and industrial applications. This duplex receptacle features an isolated ground
- ground contacts are separated from the mounting strap and conventional grounding system. It accommodates both back and side wiring with screw terminals, supports #12-#10 AWG stranded or solid copper wire, and is rated for 20 amps at 125 volts AC.
Key Features of the HUBBELL - 20A Duplex Receptacle:
- Isolated Ground: Triangle marking on face indicates isolated ground design for dedicated grounding paths.
- Amperage/Voltage Rating: Rated for 20A, 125V AC (NEMA 5-20R configuration).
- Wiring Method: Back and side wired screw terminals support #12–#10 AWG copper wire only.
- Material Construction: Nylon housing with reinforced PET base
- nickel-plated brass contacts
- phosphor bronze power contacts.
- Mounting Type: Flush mount with included mounting hardware
- fits standard gang boxes.
- Face Style: Finder Groove face is intended to assist with device identification during installation or maintenance.
- Circuit Certification & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant.
- Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.
- Dielectric Strength & Flammability Ratings: Withstands a dielectric voltage of at least 2,000V
- top flammability rating UL94 V-2, base UL94 V-0 or better.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.60
- Package Height: 4.00
- Package Weight: 0.25
