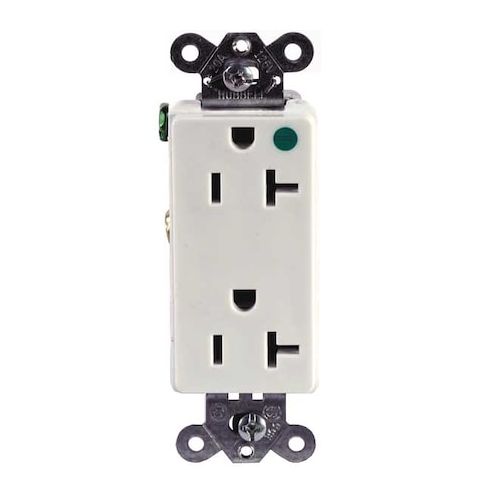

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG2182WA
Free Shipping
In Stock
The HUBBELL 5-20R Decorator Duplex Receptacle is a reliable and versatile electrical outlet designed for high-traffic areas, such as hospitals, offices, and homes. With its isolated ground feature, this receptacle provides a safe and secure connection for sensitive equipment. Its 20A and 125V AC rating makes it suitable for a wide range of applications, including powering computers, televisions, and other electronics. The receptacle's flush mount design and high-impact resistant nylon housing ensure durability and ease of installation. Perfect for new construction or renovation projects, this receptacle meets various standards and certifications, including CSA, UL, and NEMA.
Top product features:
- Flush mount design allows for a sleek and compact installation
- Isolated ground with a dedicated insulated ground wire connection provides enhanced safety
- Triple wipe brass contacts ensure reliable and durable electrical connections
Top product applications:
- Residential Electrical Installation
- Commercial Electrical Installation
- Industrial Electrical Installation
The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount, hospital grade electrical outlet rated for 20A and 125V AC. Features an isolated ground
- grounding contacts are separated from the mounting strap.
Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:
- Isolated Ground: Triangle marking on face indicates isolated ground
- dedicated insulated ground wire connection at green screw
- Electrical Ratings: Rated for 20A, 125V AC
- listed as suitable for current interrupting up to its rated capacity
- NEMA Configuration: NEMA 5-20R, single phase, polarized (2 pole, 3 wire)
- Wiring Options: Back and side wired screw terminals accommodate #12–#10 AWG stranded or solid copper wire
- Material & Construction: High impact resistant nylon housing
- triple wipe brass contacts
- Mounting Type: Flush mount with included mounting hardware
- Standards Compliance: CSA Certified C22.2 No.42 File 285
- UL Listed to UL498 File E2186
- Federal Specification W-C-596
- NEMA WD-6 compliant
- Operating Temperature Range: Maximum continuous 75°C (167°F), minimum -40°C (-40°F) without impact
- Flammability Rating: TOP UL94 V-2 / BASE UL94 V-0
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.90
- Package Height: 1.70
- Package Weight: 0.25
