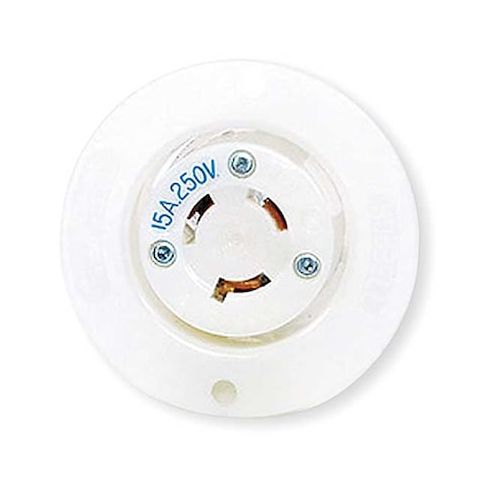

Flanged Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, White MPN:HBL4585C
Free Shipping
In Stock
The HUBBELL 15A Flanged Twist-Lock Receptacle is designed for use in industrial environments, providing a secure and reliable connection for equipment and machinery. Its twist-lock mechanism ensures a secure fit, while its nylon housing and stainless steel flange withstand harsh conditions. With a rating of 15 amps and 250V AC, this receptacle is suitable for a wide range of applications, including manufacturing, construction, and oil and gas industries. Its flush mount design and NEMA Type 1 enclosure make it ideal for indoor use, providing a safe and efficient solution for power distribution.
Top product features:
- Rated for 15 A, 250V AC single-phase operation
- Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals
- Has a twist-lock mechanism suitable for use in industrial environments
Top product applications:
- Industrial Control Panels
- Heavy-Duty Machinery
- Manufacturing Equipment
The HUBBELL 15A Flanged Twist-Lock Receptacle is a flanged locking receptacle with twist-lock mechanism suitable for use in industrial environments. This device includes a twist-lock mechanism
- rated for 15 amps and 250V AC.
Key Features of the HUBBELL 15A Flanged Twist-Lock Receptacle:
- Amperage/Voltage: Rated for 15 A, 250V AC single-phase operation
- NEMA Configuration: L6-15R twist-lock design with polarized contacts
- Material Construction: Nylon housing made of thermoplastic materials with .025" stainless steel round flange
- Mounting Type: Flush mount
- mounting screws included
- Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals
- Terminal Screws: Accepts slotted, Phillips, and Robertson head drivers (#8-32)
- Operating Temperature Range: -40°C to +75°C (without impact)
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 suitability for indoor dry locations unless otherwise protected
- Certifications/Standards: UL 498 listed
- CSA C22.2 No.42 certified
- Federal Specification W-C-596 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 2.00
- Package Weight: 0.20
