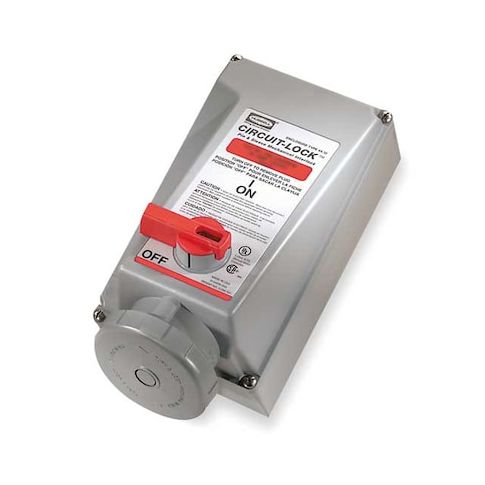

WT Mch Intrlk Dvc, 3P4W, 60 A, 480V AC, 30hp MPN:HBL460MI7W
Free Shipping
In Stock
The HUBBELL Receptacle Interlock is a heavy-duty electrical connection solution designed for demanding indoor and outdoor environments. Suitable for use in harsh conditions, this unfused, pin and sleeve device integrates a disconnect switch with the receptacle, providing a safe and reliable connection for high ampacity electrical connections. Compatible with lockout/tagout procedures, it's ideal for applications where safety and efficiency are paramount, such as in industrial settings, construction sites, or areas with high humidity or exposure to water. Its watertight construction and high voltage rating make it an excellent choice for a variety of industries and applications.
Top product features:
- Rated for high ampacity electrical connections
- Features a non-metallic thermoplastic housing
- Certified for current interrupting at full rated current/voltage
Top product applications:
- Industrial Control Panels
- Construction Sites
- Manufacturing Facilities
The HUBBELL Receptacle Interlock is a rated for high ampacity electrical connections
- suitable for specified indoor and outdoor use mechanical interlock designed for high ampacity electrical connections in demanding indoor and outdoor environments. This unfused, pin and sleeve device integrates a disconnect switch with the receptacle, includes a disconnect switch with the receptacle, compatible with lockout/tagout procedures supporting lockout/tagout procedures. It is rated for 60 A, 480V AC three-phase service, accepts compatible plug number 5Z917, and features a non-metallic thermoplastic housing
- see specifications for environmental ratings suitable for harsh conditions.
Key Features of the HUBBELL Watertight Mechanical Interlock:
- Amperage/Voltage Rating: Rated for 60 A at 480V AC (three-phase), can be used with motor loads up to 30 hp as specified by manufacturer ratings
- Connection Type: Pin and sleeve configuration with pressure terminal screws
- accommodates #8 AWG to #2 AWG wire sizes
- Watertight Construction: IP67 ingress protection
- NEMA Type 4X and Type 12 enclosure ratings provided
- Housing Material: non-metallic thermoplastic housing
- see specifications for environmental ratings
- Locking Handle: Lockable handle is compatible with OSHA lockout/tagout practices
- Circuit Interrupting Performance: Certified for current interrupting at full rated current/voltage
- dielectric strength withstands up to 3000V AC
- Mounting Hardware Included: Screw mounting hardware provided
- Standards Compliance: UL Listed product meeting applicable industry standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.30
- Package Height: 6.90
- Package Weight: 7.50
