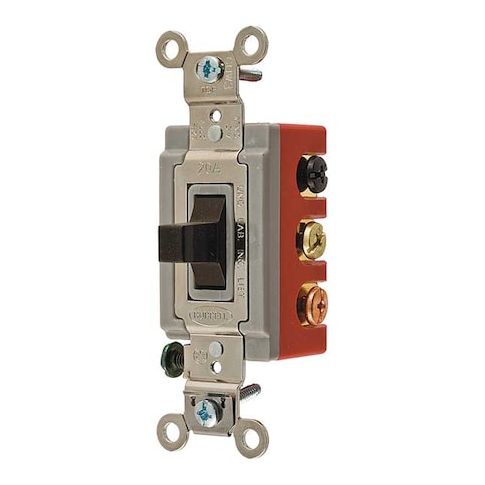

Wall Swtch, 2-Pole, 120/277V, 20A, Brn, Toggl MPN:HBL1386

• The HUBBELL Wall Switch is a double pole, double throw (DPDT) industrial-grade toggle switch rated for 20A at 120/277V AC. Designed for back and side wiring, it features a maintained switch function with three handle positions and accommodates #14 to #10 AWG solid or stranded copper wire. The switch is constructed with a durable nylon toggle and housing, For use in industrial environments.





  Key Features of the HUBBELL Wall Switch:





  • Switch Type: Double Pole Double Throw (DPDT) with center off position


  • Electrical Ratings: Rated for 20A, 120/277V AC
  • supports up to 1 horsepower


  • Wiring Method: Back and side wired
  • screw terminals accommodate #14–#10 AWG copper wire


  • Construction: Nylon material construction


  • Screw Terminals: Large brass binding head screws with deep slots for designed to facilitate fastening


  • Strip Gauge: Integrated strip gauge aids in accurate wiring during installation


  • Performance Standards: UL Listed and CSA Certified
  • meets UL 94V-2 flammability requirements


  • Operating Temperature Range: -40°F to 167°F (-40°C to 75°C)
