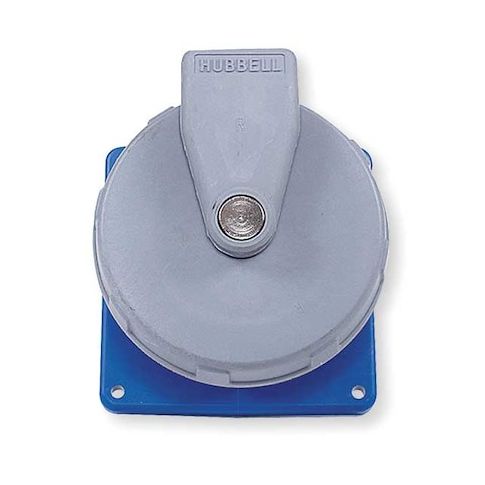

Watertight Pin & Sleeve Receptacle, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue MPN:HBL330R6W

• The HUBBELL IEC Pin and Sleeve Receptacle is an IP67 rated for water ingress protection electrical device suitable for use in industrial settings requiring 30A, 250V AC single-phase connections. Rated for 30A and 250V AC, this single-phase receptacle features a straight connection orientation with screw terminal wiring, supporting wire sizes from #12 AWG to #8 AWG. The unit includes a flanged mounting design and spring-loaded cap with neoprene gasket to maintain moisture resistance, making it suitable for environments where IP67 ingress protection is specified.





  Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:





  • Current/Voltage Rating: 30A, 250V AC single-phase


  • Ingress Protection: IP67 rated for water ingress protection


  • Body Material: Zytel 101 nylon thermoplastic housing


  • Cord Size Compatibility: Accepts #12 AWG to #8 AWG conductors


  • Connection Type: Pressure terminal screws with grounded IEC configuration


  • Operating Temperature Range: -40°C to 75°C continuous operation


  • Flammability Rating: UL 94 HB or better


  • Standards Compliance: CSA C22.2 No.182.1
  • UL Classified to IEC 60309-1/-2
  • UL Listed (File E146032)


  • Cap Type & Gasket Material: Spring-loaded cover with neoprene gasket
