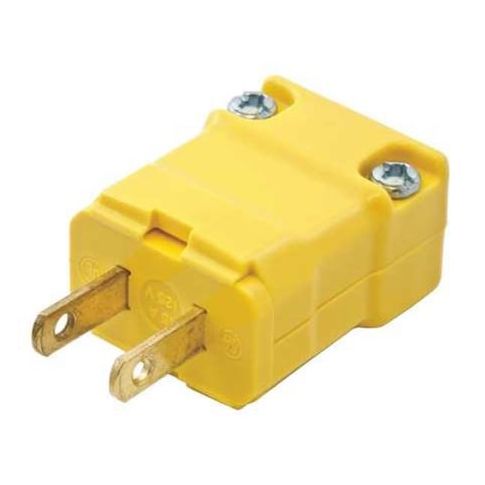

Straight Blade Plug, 1-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Non-Grounded MPN:HBL5865VY
Free Shipping
In Stock
The HUBBELL 2 Wire Industrial Straight Blade Plug is a reliable and durable solution for commercial and industrial electrical connections. Designed for use in non-grounding applications, this plug is perfect for equipment, machinery, and appliances that require a straightforward and secure connection. With a rating of 15 amps and 125V AC, it can handle demanding tasks while providing a secure and long-lasting connection. Suitable for use in a variety of industries, including manufacturing, construction, and healthcare, this plug is a great addition to any electrical setup, offering ease of installation, corrosion resistance, and compliance with industry standards.
Top product features:
- Hinged one-piece nylon body for straightforward assembly
- Screw terminal wire connections for easy installation
- Accepts #18 AWG to #14 AWG stranded copper wire, suitable for cords between 0.218 in and 0.385 in diameter
Top product applications:
- Commercial Electrical Connections
- Industrial Electrical Connections
- General Purpose Power Distribution
The HUBBELL 2 Wire Industrial Straight Blade Plug is a non-grounding, straight blade plug designed for commercial and industrial electrical connections. Rated for 15 amps and 125V AC, this plug features a hinged one-piece nylon body for straightforward assembly and screw terminal wire connections. It accommodates two wires with brass contact blades and supports cord sizes from 0.218 in to 0.385 in diameter.
Key Features of the HUBBELL - 2 Wire Industrial Straight Blade Plug:
- Amperage/Voltage Rating: Rated for 15 A at 125V AC
- NEMA Configuration: 1-15P, non-polarized, non-grounding design
- Body Construction: Hinged one-piece nylon housing construction with corrosion-resistant properties
- Cord Accommodation: Accepts #18 AWG to #14 AWG stranded copper wire
- suitable for cords between 0.218 in and 0.385 in diameter
- Cord Clamp Material: Noryl (Polyphenylene Oxide) clamp for conductor retention
- Contact Blades Material: Brass blades (.060" thick)
- steel ground screw (green finish)
- Dielectric Strength & Flammability: Dielectric strength: 2,000V minimum
- UL94 HB flammability rating
- Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C (-40°F) without impact
- Standards Compliance: CSA Certified C22.2 No.42 File 280C
- NEMA WD-6 Compliant
- UL Listed to UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.70
- Package Height: 3.10
- Package Weight: 0.10
