Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL415H

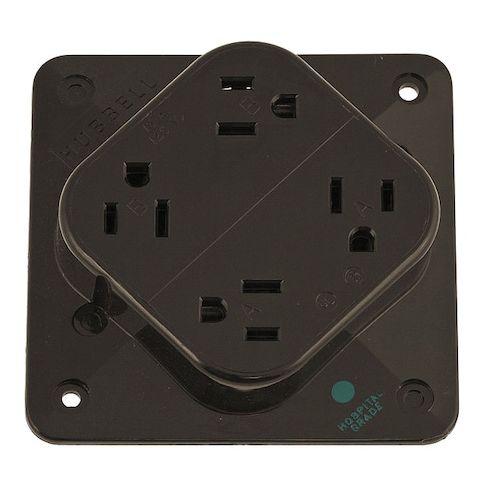

• The HUBBELL 4-PLEX Receptacle is a hospital grade, surface mount quad outlet designed for use with standard straight blade plugs. Rated for 15A and 125V AC, this receptacle features four NEMA 5-15R outlets in a compact polycarbonate housing. It supports back wired screw terminal connections and accommodates #14 to #12 AWG copper conductors.





  Key Features of the HUBBELL 4-PLEX Receptacle:





  • Outlet Configuration: Quad (four) NEMA 5-15R outlets


  • Mounting Type: Surface mount with included adapter plate and portable box


  • Amperage/Voltage Rating: Rated for 15A, 125V AC


  • Wiring Method: Back wired screw terminals suitable for #14–#12 AWG copper wire


  • Contact Material: Brass triple wipe contacts


  • Hospital Grade: Complies with hospital grade Fed. Spec. requirements
  • certified to CSA C22.2 No.42, UL498 listed


  • Dielectric Strength & Flammability: Rated for a minimum 2,000V dielectric voltage
  • UL94 V-2 flammability rating


  • Operating Temperature Range: -40°F to +167°F (maximum continuous temperature of 75°C)


  • Circuit Features: Break-off tabs allow split wiring
  • anchor hole and loop feature designed to assist in solid wire termination
