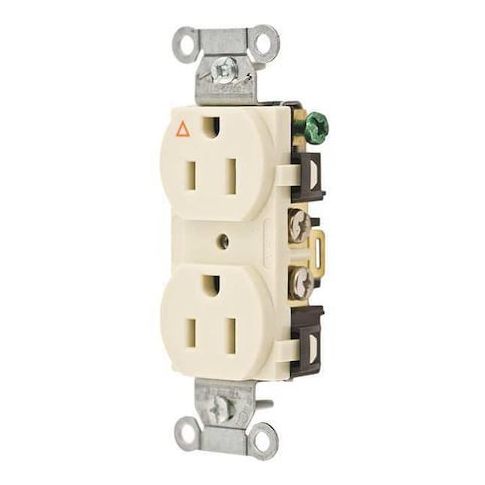

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG15CRI
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a reliable and versatile solution for commercial specification grade applications. Suitable for use in sensitive installations, its isolated ground design reduces electrical noise and provides a smooth, secure connection. With a rating of 15 amps at 125 volts AC, this receptacle supports up to #10 AWG copper wire and is certified to meet various industry standards, including UL Listed, CSA Certified, and NEMA WD-6 compliant. Ideal for use in offices, data centers, and other high-tech environments, this receptacle ensures safe and efficient power delivery.
Top product features:
- Isolated Ground: Triangle marking on face indicates an isolated ground configuration to separate equipment grounding from conventional system grounding.
- Electrical Ratings: Rated for 15 A, 125 V AC supports up to #10 AWG copper wire.
- NEMA Configuration: Standard NEMA 5-15R duplex outlet (2-pole, 3-wire).
Top product applications:
- Commercial specification grade applications
- Sensitive installations where electrical noise reduction is necessary
- High-temperature environments with operating temperatures up to +75°C
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex isolated ground receptacle suitable for use in commercial specification grade applications. It features a smooth nylon face and is rated for 15 amps at 125 volts AC, with side-wired screw terminals for secure connectivity. The isolated ground design separates the grounding contacts from the mounting strap, which can help reduce electrical noise in sensitive installations.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Isolated Ground: Triangle marking on face indicates an isolated ground configuration to separate equipment grounding from conventional system grounding.
- Electrical Ratings: Rated for 15 A, 125 V AC
- supports up to #10 AWG copper wire.
- Construction: Components include nylon base and face with brass power and ground contacts
- corrosion resistant components.
- Mounting Type: Flush mount with galvanized steel mounting strap and included hardware.
- NEMA Configuration: Standard NEMA 5-15R duplex outlet (2-pole, 3-wire).
- Certifications: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant.
- Performance: Dielectric voltage rating: minimum 2,000V
- flammability rating UL94 V-2
- operating temperature range -40°C to +75°C (without impact).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 4.70
- Package Height: 2.80
- Package Weight: 1.72
