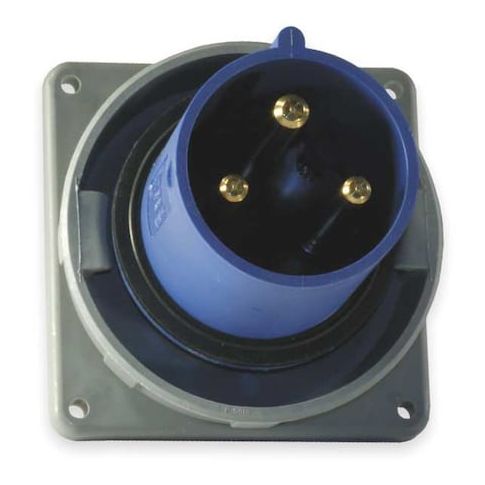

Watertight Pin & Sleeve Inlet, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue MPN:HBL360B6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Inlet is a rugged and reliable electrical inlet designed for use in industrial environments. Rated for 60A and 250V AC, this single-phase device features a flanged design with screw terminal wire connections, suitable for #8 to #2 AWG conductors. Its IP67 rating ensures protection against dust and water ingress, making it perfect for harsh conditions. Ideal for use in manufacturing, construction, and other industries where electrical power is required in a wet or dirty location, this inlet offers a safe and reliable connection point for your equipment.
Top product features:
- Meets IP67 ingress standards.
- Accepts #8 to #2 AWG wire sizes.
- Features a flanged design with screw terminal wire connections.
Top product applications:
- Industrial Control Panels
- Factory Automation Equipment
- Construction and Mining Machinery
The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 60A and 250V AC, intended for use in industrial environments. Rated for 60A and 250V AC, this single-phase device features a flanged design with screw terminal wire connections, suitable for #8 to #2 AWG conductors. Constructed from Zytel 101 nylon and thermoplastic materials
- meets IP67 ingress standards.
Key Features of the HUBBELL IEC Pin and Sleeve Inlet:
- Current/Voltage Rating: 60A, 250V AC single phase
- Ingress Protection: IP67 rated according to IEC 60529
- Body Material: Zytel 101 nylon housing with neoprene gasket
- Cord Size Compatibility: Accepts #8 to #2 AWG wire sizes
- Wire Connection Type: Pressure terminal screws (screw terminals)
- Flange Type & Dimensions: Flanged
- face diameter 2.97 in., flange diameter 3.46 in.
- Temperature Range: Rated operating temperature range: -40°C to +75°C
- Grounding Style: IEC grounding configuration
- Switch Rated & Horsepower Rating: Switch rated
- maximum supported load: 3 hp
- Standards Compliance: CSA Certified File LR280C
- UL Classified/IEC 60309-1/-2
- UL Listed File E146032
- Main Features: Gasketed sealing ring per product specifications
- raised collar design per product specifications
- shrouded design as specified.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.50
- Package Height: 5.00
- Package Weight: 1.75
