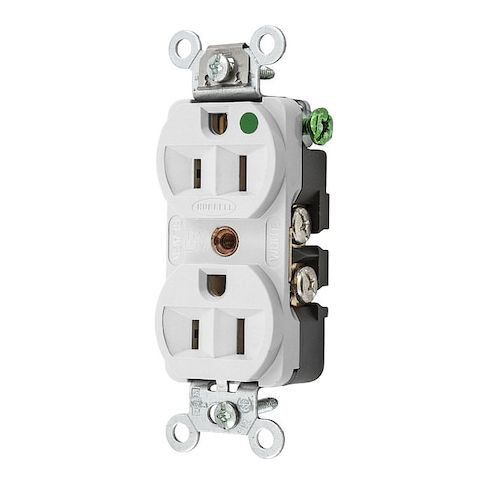

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200HW
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a hospital-grade, commercial-grade electrical device ideal for use in high-traffic areas such as hospitals, hotels, and office buildings. Its heavy-duty construction and impact-resistant thermoplastic housing ensure durability and withstand physical abuse. This device supports both back and side wiring methods, accommodating #14 to #10 AWG copper wire, and features a four-point grounding system for added safety. Suitable for continuous operation in temperatures up to 75°C (167°F), this receptacle is perfect for applications where reliability and safety are paramount, such as in healthcare facilities, hospitality settings, and commercial environments.
Top product features:
- Hospital Grade: Complies with FED SPEC Listed requirements
- Features heavy-duty construction
- Supports both back and side wiring methods
Top product applications:
- Commercial Office Buildings
- Healthcare Facilities
- Industrial Settings
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a hospital grade, suitable for use in commercial environments. It features a slender, compact design with an impact-resistant thermoplastic housing with finder groove face to help prevent breakage. This device is rated for 15 amps at 125 volts AC, supports both back and side wiring methods, and accommodates #14 to #10 AWG copper wire. The receptacle complies with federal specifications for hospital grade devices and includes grounding staple, mounting hardware, and wall plate or weatherproof cover.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Hospital Grade: Complies with FED SPEC Listed requirements
- features heavy-duty construction.
- Electrical Ratings: Rated for 15 A at 125 V AC
- NEMA configuration 5-15R
- maximum wattage of 1875 W.
- Wiring Options: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG).
- Grounding: Four-point grounding system
- Impact Resistance: Thermoplastic housing with deep face design enhances durability against physical abuse.
- Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V
- UL94 V-0 flammability rating.
- Operating Temperatures: Suitable for continuous operation up to 75°C (167°F) and down to -40°C (without impact).
- Certifications & Standards: CSA Certified C22.2 No.42 File285
- Federal Specification W-C-596
- NEMA WD-6
- UL498 File E2186 compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.60
- Package Height: 4.10
- Package Weight: 0.10
