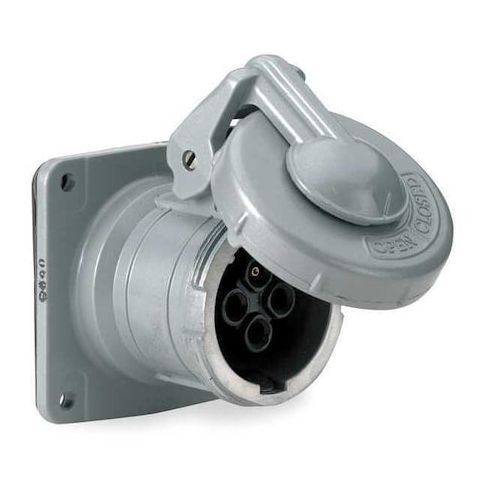

Watertight Pin & Sleeve Receptacle, 60 A, 600V AC/250V DC, Single Phase, 2 Pole, Style 2 Grounding MPN:HBL360RS2W
Free Shipping
In Stock
The HUBBELL Pin and Sleeve Watertight Receptacle is a rugged and reliable electrical device designed for use in harsh industrial environments where moisture and impact are a concern. Rated for 60 amps and 600 volts AC, this receptacle features a combination of metallic shrouding and non-metallic housing for maximum durability and insulation. Its watertight performance and dust-tight closure make it ideal for applications in chemical plants, oil rigs, and other areas where electrical safety is paramount. With its CSA certification and UL listing, this receptacle meets the highest standards for industrial electrical equipment.
Top product features:
- Accommodates wire sizes from #8 AWG to #2 AWG with pressure terminal screw connectivity
- Rated for operation at 60 amps, 600 volts AC
- Features a spring-loaded cap designed to help limit dust ingress
Top product applications:
- Outdoor Construction and Building Sites
- Marine and Boat Applications
- Industrial Machinery and Equipment
The HUBBELL Pin and Sleeve Receptacle, 60A, 600VAC is a watertight electrical device intended for industrial environments requiring resistance to moisture and impact. This receptacle features a combination of metallic shrouding and non-metallic housing with materials selected for both durability and insulation. It accommodates wire sizes from #8 AWG to #2 AWG with pressure terminal screw connectivity, rated for operation at 60 amps, 600 volts AC. The unit includes a spring-loaded cap designed to help limit dust ingress and neoprene gaskets included for watertight performance.
Key Features of the HUBBELL Pin & Sleeve Watertight Receptacle:
- Current/Voltage Rating: Rated for 60 A at 600V AC/250V DC
- Body Material: Valox 357 thermoplastic housing with aluminum shroud
- NEMA Enclosure Rating: Type 4X
- Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG (6 to 4 AWG cord size)
- Connection Orientation: Straight entry design with screw terminals
- Environmental Ratings: UL94 V-0 flammability rating
- Bushing/Gasket Materials: Aluminum bushing
- neoprene gasket included
- Cap Type: Spring-loaded cover provides dust-tight closure when not in use
- Industry Standards: CSA Certified (C22.2 No.182.1), UL Listed (Type 4X), meets UL Standard 1682 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 49 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.10
- Package Width: 18.30
- Package Height: 9.70
- Package Weight: 2.30
