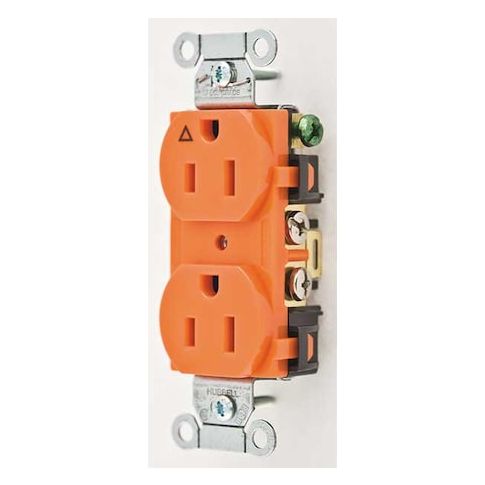

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG15CR
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a commercial-grade solution for residential and commercial applications, providing a reliable and safe electrical connection. With an isolated ground system and side-wired screw terminals, this receptacle is suitable for high-traffic areas, such as offices, restaurants, and hotels. The 15A, 125V AC rating makes it ideal for powering a variety of devices, from computers and phones to kitchen appliances and medical equipment. Its durable construction and compliance with industry standards ensure a long lifespan and peace of mind for building owners and occupants.
Top product features:
- Isolated Ground: Features insulation barrier construction that isolates ground contacts from the mounting strap.
- Rated for 15 A and 125 V AC.
- Side-wired screw terminals accommodate #14–#10 AWG copper stranded or solid wire.
Top product applications:
- Commercial specification grade applications
- Commercial construction projects
- Industrial facilities
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is suitable for commercial specification grade applications. This receptacle features an isolated ground system, which separates the ground contacts from the mounting strap. It is rated for 15 amps and 125 volts, with side-wired screw terminals suitable for #14–#10 AWG copper conductors.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Isolated Ground: Features insulation barrier construction that isolates ground contacts from the mounting strap.
- Electrical Ratings: Rated for 15 A and 125 V AC
- NEMA configuration 5-15R.
- Material Construction: Nylon base and face with brass power and ground contacts
- galvanized steel mounting hardware included.
- Wiring Method: Side-wired screw terminals accommodate #14–#10 AWG copper stranded or solid wire.
- Performance: Rated for dielectric voltage of at least 2,000V
- certified for current interrupting at rated current.
- Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 4.70
- Package Height: 2.90
- Package Weight: 1.72
