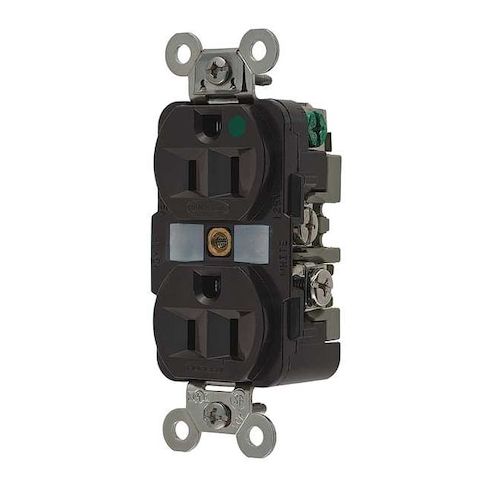

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a reliable and durable solution for hospital-grade environments. Rated for 15 A, 125 VAC operation, this traditional duplex outlet is ideal for use in high-abuse areas where impact resistance is crucial. With its deep body design and four-point grounding system, this receptacle provides redundant grounding and increased contact pressure. Suitable for applications such as hospitals, clinics, and healthcare facilities, this receptacle meets stringent standards and certifications, including UL Listed to UL498 File E2186 and CSA Certified C22.2 No.42 File 285. Its compact design and flush mount feature make it a convenient and space-saving solution.
Top product features:
- Deep body design with circuit ID face
- Back and side wired screw terminals accommodate #14–#10 AWG copper wire
- Four-point grounding system
Top product applications:
- Hospital environments
- High-abuse areas such as schools and offices
- Commercial settings requiring a traditional duplex outlet
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex outlet rated for use in hospital grade environments. It features a deep body design with circuit ID face and is constructed from impact-resistant thermoplastic material. This receptacle is UL Listed to UL498 File E2186 and includes bypass and ground contact designs to provide redundant grounding and increased contact pressure.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A, 125 VAC operation
- NEMA Configuration: 5-15R, standard duplex outlet type
- Wiring Method: Back and side wired screw terminals accommodate #14–#10 AWG copper wire
- Contact Material: Nickel-plated brass contacts
- Grounding System: Four-point grounding
- Impact Resistance: Deep face design resists breakage in high-abuse areas
- Dielectric Strength: Withstands minimum of 2,000V dielectric voltage
- Flammability Rating: UL94 V-0 rated thermoplastic housing for enhanced resistance to ignition
- Operating Temperature Range: -40°C (w/o impact) to +75°C continuous use
- Certifications & Standards: CSA Certified C22.2 No.42 File 285
- Federal Specification W-C-596
- NEMA WD-6
- UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 4.20
- Package Weight: 0.25
