Receptacle, Interlock MPN:HBL430MI9W
Free Shipping
In Stock

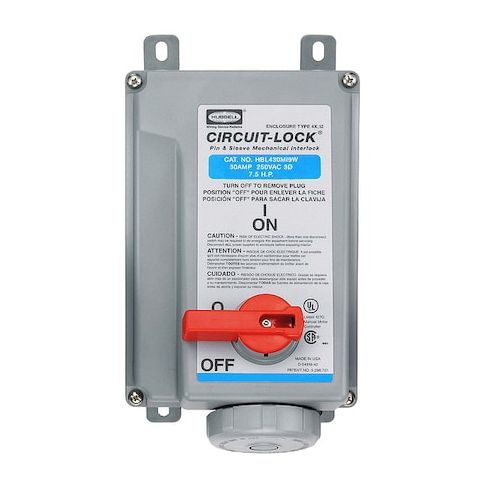

The HUBBELL Unfused Circuit-Lock Watertight Mechanical Interlock is a reliable and versatile solution for applications requiring watertight electrical connections. Suitable for use in harsh environments, this device integrates a disconnect switch with a receptacle, providing a visual verification of disconnection and a secure locking mechanism. Ideal for use in outdoor and indoor settings, it's perfect for applications such as construction sites, marine environments, and areas with high humidity. Its durable thermoplastic housing and IP67 rating ensure protection against dust and water, making it a great choice for industries that require reliable and weather-resistant electrical connections.
Top product features:
- The unit integrates a disconnect switch with the receptacle, providing a means to visually verify disconnection when the plug is removed and locked out.
- The interlock mechanism restricts operation of the switch unless the plug is engaged, and restricts removal of the plug until the switch is off.
- The unit features a non-metallic thermoplastic housing that can be used with metallic conduit without affecting ground continuity.
Top product applications:
- Marine Applications
- Industrial Control Panels
- Outdoor Construction Equipment
The HUBBELL Unfused Circuit-Lock® Watertight Mechanical Interlock is a pin and sleeve device rated for use with specified ampacity in environments requiring watertight electrical connections, suitable for indoor and outdoor applications. This unit integrates a disconnect switch with the receptacle, providing a means to visually verify disconnection when the plug is removed and locked out. The interlock mechanism restricts operation of the switch unless the plug is engaged, and restricts removal of the plug until the switch is off. It features a non-metallic thermoplastic housing
- housing can be used with metallic conduit
- consult installation instructions regarding grounding requirements, compatible with metallic conduit without affecting ground continuity, and supports IEC 60309-2 plugs.
Key Features of the HUBBELL Unfused Circuit-Lock® Watertight Mechanical Interlock:
- Amperage Rating: 30 A
- Voltage Rating: 3 Phase 240V AC (max voltage 600V AC)
- Maximum motor rating: 7-1/2 hp (per manufacturer specifications)
- Circuit Breaker/Fuse Protection: Non-fused design
- Electrical Connection Type: Pin and sleeve with pressure terminal screws
- Cord Size Compatibility: Accepts #12 AWG to #8 AWG wire sizes
- Number of Poles/Wires: 3 poles, 4 wires configuration
- Ingress Protection & Ratings: IP67
- NEMA ratings 4X (watertight) & 12 (dust-tight)
- Operating Temperature Range: -40°C to +75°C continuous operation
- Housing Material & Resistance Properties: Thermoplastic construction
- UV stabilized
- UL94-5VA/V0 flammability rating
- impact resistant per UL746C standards
- Grounding Feature: Includes grounding feature as part of its design
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 7.80
- Package Height: 7.30
- Package Weight: 6.20
