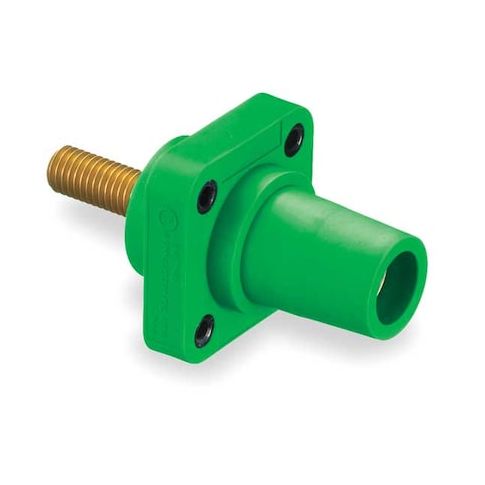

Recpt, Green, Female, Threaded Stud, 400 A MPN:HBLFRSGN

• The HUBBELL Series 16 Panel Mount Receptacle is a single pole, female receptacle intended for use in high ampacity electrical connections. Rated for up to 400A and 600V AC/DC, this stud-type device features a straight connection orientation and is suitable for indoor installations where protection against dust, water, and corrosion is required according to NEMA enclosure ratings 3R, 4X, and 12. The housing is constructed from thermoplastic elastomer with brass contacts for reliable conductivity.





  Key Features of the HUBBELL Series 16 Panel Mount Receptacle:





  • Amperage/Voltage Rating: Rated for up to 400A at 600V AC or DC


  • Connection Type: Threaded stud terminal accommodates #4 AWG to #4/0 AWG wire sizes


  • Mounting Style: Through hole mounting on panels using threaded thru-hole hardware


  • NEMA Enclosure Ratings: For use in enclosures rated as NEMA Type 3R (rainproof), Type 4X (corrosion resistant), and Type 12 (dust-tight)


  • Material Construction: Housing made from thermoplastic elastomer
  • contact material is brass


  • Device Configuration: Single pole, single wire
  • compatible with Series 16 devices


  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
