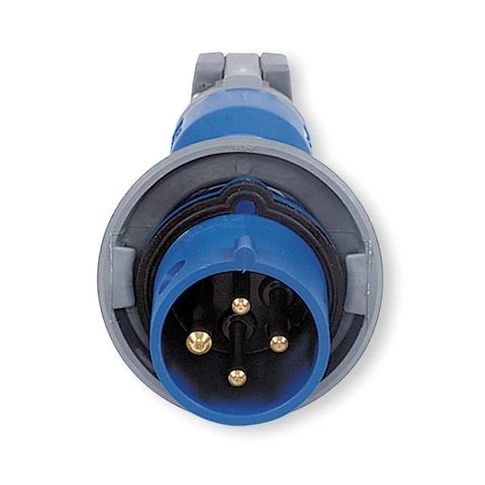

Watertight Pin & Sleeve Plug, 30 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL430P9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a reliable and durable electrical plug designed for use in industrial and commercial environments. Rated for 30 amps and 250V AC, this three-phase, four-wire device provides a watertight seal, making it suitable for applications where moisture resistance is required. Its non-metallic housing and gasketed sealing ring ensure a secure connection in harsh conditions. Ideal for use in wet locations, such as outdoor equipment or in areas prone to moisture, this plug provides protection against corrosion and electrical shock. Perfect for a variety of applications, including manufacturing, construction, and oil and gas industries.
Top product features:
- The product provides a watertight seal through a gasketed sealing ring.
- The device is rated for use in industrial and commercial environments with a 30 A, 250V AC current/voltage rating.
- The product has a shrouded design and accepts cables from 0.5 in to 1.25 in diameter.
Top product applications:
- Industrial settings where moisture resistance is required
- Commercial environments with high electrical demands
- Outdoor applications where a watertight seal is necessary
The HUBBELL IEC Pin and Sleeve Plug is an electrical plug rated for use in industrial and commercial environments. Rated for 30 amps and 250V AC, this three-phase, four-wire device includes a non-metallic housing constructed from Zytel 801 nylon. It includes a gasketed sealing ring to provide a watertight seal, making it suitable for applications where moisture resistance is required.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: 30 A, 250V AC
- Number of Poles/Wires: 3 poles, 4 wires
- Body Material: Zytel 801 nylon with impact-resistant properties
- Housing Type: Non-metallic
- shrouded design
- Cable Diameter Range: Accepts cables from 0.5 in to 1.25 in diameter
- Wire Size Compatibility: For wire sizes between 12 AWG (minimum) and 8 AWG (maximum)
- Operating Temperature Range: -40°C to +75°C
- NEMA Enclosure Rating/IP Rating: NEMA 4X
- IP67 rated for watertight performance
- Connection Orientation/Type: Straight orientation with screw terminals
- Grounding Style: IEC grounded configuration
- Standards Compliance: CSA Certified C22.2 No.182.1
- UL E146032
- UL IEC60309-1 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.50
- Package Height: 4.40
- Package Weight: 1.45
