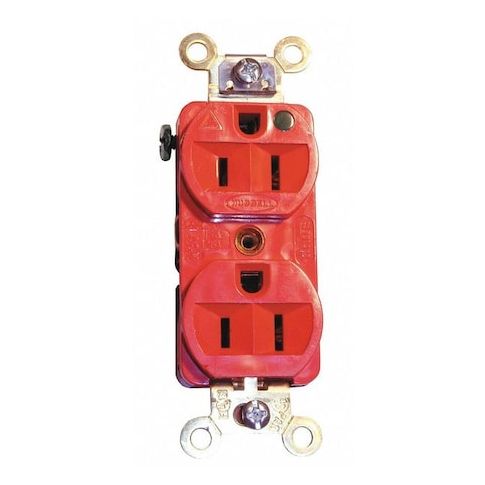

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG8200R

• The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is a traditional duplex receptacle rated as "hospital grade" and suitable for use in demanding environments. It features isolated ground construction to separate the ground contacts from the mounting strap and conventional grounding system, intended to provide isolated ground connections. The device accommodates both back and side wiring with screw terminals, accepts #14–#10 AWG copper wire, and is suitable for indoor use in dry locations unless additional protection is provided.





  Key Features of the HUBBELL 15A Duplex Receptacle:





  • Amperage/Voltage: Rated for 15 A at 125 VAC


  • NEMA Configuration: 5-15R (2-pole, 3-wire)


  • Isolated Grounding: Triangle marking on face indicates isolated ground design


  • Construction: Nylon housing with finder groove face


  • Wiring Method: Back and side wired screw terminals
  • accommodates #14–#10 AWG stranded or solid copper wire


  • Certification & Standards: CSA Certified C22.2 No.42 File 285
  • Federal Specification W-C-596
  • NEMA WD-6
  • UL Listed to UL498 File E2186


  • Operating Temperature Range: -40°C minimum (without impact) to maximum continuous +75°C (167°F)


  • Dielectric Strength: Withstands minimum of 2,000V


  • Includes mounting hardware and grounding staple
