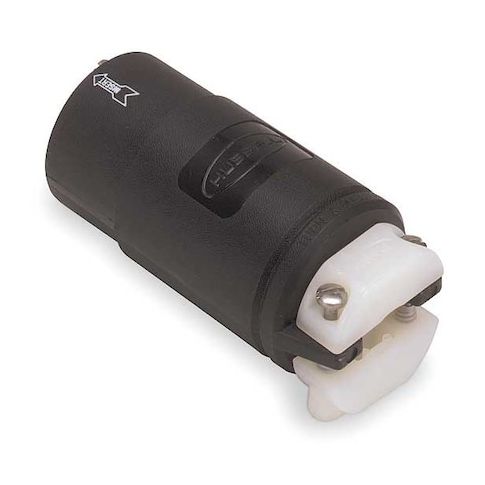

Locking Connector, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL23002GB

• The HUBBELL 20/10A Locking Connector is an industrial-grade device rated for use in specified electrical applications. It features a two-pole, three-wire configuration and supports voltage ratings of 125V AC, 250V DC, and 480V AC with a current rating up to 20A. The connector body is constructed from impact-resistant nylon with an insulated thermoset interior, providing durability under harsh conditions. A spring-loaded safety shutter within the connector includes a spring-loaded safety shutter within the connector.





  Key Features of the HUBBELL - 20/10A Locking Connector:





  • Amperage Rating: Rated for up to 20A
  • compatible with #16 AWG to #12 AWG stranded copper wire.


  • Cable Range: Accepts cable diameters from 0.320" to 0.660".


  • Body Material: Black thermoset housing with impact resistance and UL HB flammability rating.


  • Contact Material: Bronze contacts molded into the nose for damage resistance.


  • Strain Relief: Three-piece clamp assembly provides strain relief
  • IP30 rated for limited protection against dust and moisture ingress.


  • Wire Connection Type: Screw terminals identified per UL 498 standards.


  • Operating Temperature Range: Suitable for continuous use between -40°C and +75°C (without impact).


  • Safety Feature: Spring-loaded safety shutter present within the connector reduces arc exposure when mating/unmating devices under load.


  • NEMA Configuration: Non-NEMA locking design
  • grounded
  • straight connection orientation.


  • Standards Compliance: UL Listed for industrial/commercial applications in dry indoor locations unless otherwise protected.
