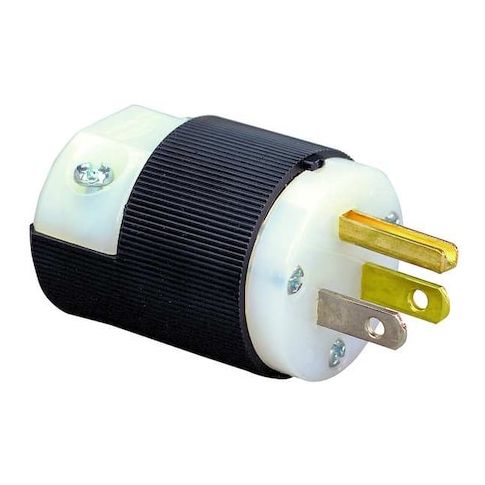

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL5266C
Free Shipping
In Stock
The HUBBELL Straight Blade Plug is a reliable and versatile solution for commercial and industrial electrical systems. Suitable for applications such as office buildings, retail spaces, and manufacturing facilities, this plug features a 2-pole, 3-wire configuration with a NEMA 5-15P rating, supporting up to 15 amps at 125 volts AC. Its ribbed nylon housing and nickel-plated polycarbonate finish ensure a secure and durable connection. With its adjustable cord clamp and screw terminals, this plug accommodates various cable sizes and wire types, making it an ideal choice for a wide range of electrical applications.
Top product features:
- Accepts cord diameters from 0.23 in to 0.72 in
- Supports up to 15 amps at 125 volts AC
- Wire sizes from 18 AWG to 10 AWG are compatible via screw terminals
Top product applications:
- Commercial electrical systems
- Industrial electrical systems
- Office equipment installations
The HUBBELL Straight Blade Plug is a male, straight connection plug suitable for use in commercial and industrial electrical systems. It features a 2-pole, 3-wire configuration with a NEMA 5-15P rating and supports up to 15 amps at 125 volts AC. The plug includes a ribbed nylon housing with nickel-plated polycarbonate finish.
Key Features of the HUBBELL Straight Blade Plug:
- Current/Voltage Rating: Rated for 15 A at 125V AC
- NEMA Configuration: 5-15P (2-pole, 3-wire grounded)
- Cord Accommodation: Accepts cord diameters from 0.23 in to 0.72 in
- Housing Material: Ribbed nylon with nickel-plated polycarbonate finish
- Cable Clamp: VARI-SIZE adjustable cord clamp accommodates various cable sizes
- Wire Size Compatibility: Supports wire sizes from 18 AWG to 10 AWG via screw terminals
- Operating Temperature Range: -40°F to +167°F
- Standards Compliance: CSA Certified C22.2 No.42 File 280
- Federal Specification W-C-596G
- NEMA WD-6
- UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 3.60
- Package Height: 2.80
- Package Weight: 1.60
