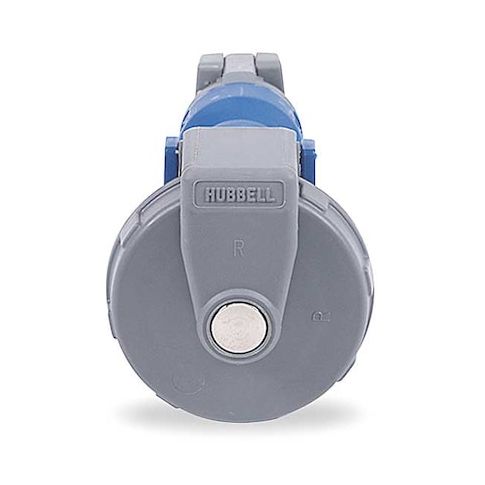

Watertight Pin & Sleeve Connector, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL520C9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a reliable and durable solution for industrial applications requiring 20 A, 120/208V AC three-phase connections. Its IP68/IP69K rating ensures protection against harsh environmental conditions, while its Zytel 801 nylon body and non-metallic housing provide a safe and secure connection. Suitable for use in a variety of industries, including manufacturing, construction, and oil and gas, this connector offers easy voltage identification with its blue color-coded housing and meets multiple industry standards for safety and performance. Its compact design and strain relief features make it an ideal choice for heavy-duty applications.
Top product features:
- Rated for 20 A at 120/208V AC, suitable for three-phase applications
- Zytel 801 nylon construction provides a durable and resistant body material
- Self-closing gasketed cover and shrouded design provide a high level of ingress protection (IP68/IP69K)
Top product applications:
- Industrial Control Panels
- Power Distribution Systems
- Heavy Duty Machinery
The HUBBELL IEC Pin and Sleeve Connector is a rated IP68/IP69K for ingress protection electrical connector intended for use in industrial applications requiring 20 A, 120/208V AC three-phase connections. It has a Zytel 801 nylon body with a non-metallic housing. It is compatible with the HBL Heavy Duty series and uses pressure terminal screws for secure connectivity. The connector meets multiple industry standards including CSA Certified LR280C and UL Classified to IEC 60309-1/2.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current Rating: Rated for 20 A at 120/208V AC, suitable for three-phase applications
- Body Material: Zytel 801 nylon construction
- Environmental Conditions: Rated IP68/IP69K ingress protection
- Cord Grip: External cord grip designed to provide strain relief
- Wire Connection Type: Screw terminals accommodate #14 AWG to #10 AWG wire sizes
- Number of Poles/Wires: Four poles, five wires (grounding)
- Housing Features: Blue color-coded housing allows easy voltage identification
- self-closing gasketed cover
- shrouded design
- Temperature Range: Operates from -40°C to +75°C (continuous)
- Standards Compliance: Meets CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.60
- Package Height: 4.30
- Package Weight: 1.55
