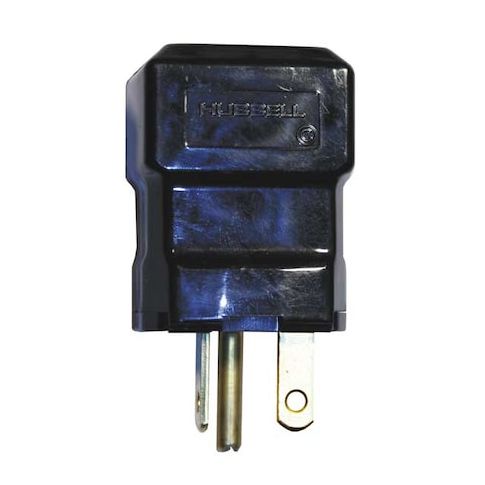

Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL5364VBK
Free Shipping
In Stock
The HUBBELL 3 Wire Commercial Straight Blade Plug is a reliable and versatile power solution for a wide range of applications. Rated for 20A at 125V AC, this plug is perfect for commercial and industrial settings where reliable power is essential. Its straight body style and hinged, one-piece nylon housing make it easy to install and use, while its screw terminals accommodate #18–#12 AWG stranded copper wire. Suitable for use in temperatures ranging from -40°C to +75°C, this plug is ideal for use in harsh environments and is compliant with CSA and UL standards, making it a trusted choice for professionals.
Top product features:
- Rated for 20A at 125V AC
- Features a straight body style with a hinged, one-piece nylon housing
- Constructed of materials with a rated dielectric strength up to 2000V per UL498 standards
Top product applications:
- Commercial Kitchen Equipment
- Office Buildings
- Data Centers
The HUBBELL 3 Wire Commercial Straight Blade Plug is a plug rated for operation at 125V AC, up to 20 amps. It features a straight body style with a hinged, one-piece nylon housing.
Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:
- Amperage/Voltage Rating: Rated for 20A at 125V AC
- NEMA Configuration: 5-20P (2 poles, 3 wires, grounded)
- Body Material: Impact modified nylon with polycarbonate housing
- Cord Clamp Material: Noryl (polyphenylene oxide) supports cord diameters from 0.22 in to 0.66 in
- Connection Type: Screw terminals for wire connection compatible with #18–#12 AWG stranded copper wire
- Corrosion Resistant: Constructed of materials specified by the manufacturer
- see technical documentation for environmental suitability.
- Dielectric Strength: Rated dielectric strength up to 2000V per UL498 standards
- Operating Temperature Range: -40°C to +75°C continuous operation without impact
- Flammability Rating: UL94 HB or better
- Standards Compliance: CSA Certified C22.2 No.42
- NEMA WD-6
- UL Listed UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 8.50
- Package Height: 3.20
- Package Weight: 1.05
