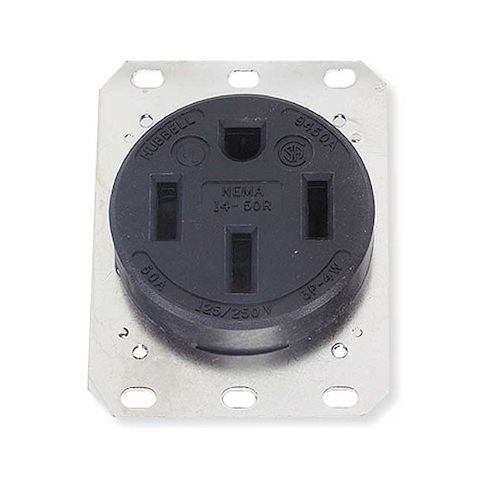

Straight Blade Receptacle, 1 Outlet, NEMA 14-50R, 50 A, 125/250V AC, 3 Poles, 4 Wires, Black MPN:HBL9450A

• The HUBBELL 14-50R Receptacle is a single, flush-mount electrical outlet rated for 50 amps and 125/250V AC. Rated for 50 A at 125/250V AC with NEMA 14-50R configuration

• suitable for compatible applications, it features a straight connection orientation and accommodates both back and side wiring methods. This receptacle is suitable for applications requiring a grounded, high-power connection with a NEMA 14-50R configuration.




  Key Features of the HUBBELL 14-50R Receptacle:





  • Current & Voltage Rating: Rated for 50 A at 125/250V AC


  • NEMA Configuration: 14-50R, single outlet type


  • Mounting Type: Flush mount design with non-flanged face


  • Wiring Method: Accepts both back and side wire connections
  • screw terminals support wire sizes from 4 AWG to 12 AWG


  • Number of Poles/Wires: Three poles, four wires
  • grounded and polarized


  • Material & Construction: Composite thermoplastic housing with brass contacts
  • UL94 V-0 flammability rating


  • Operating Temperature Range: -40°F to +167°F (minimum to maximum)


  • Circuit Protection Features: Not equipped with AFCI or GFCI
  • not rated for surge protection or outdoor use
