Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL23014HGB

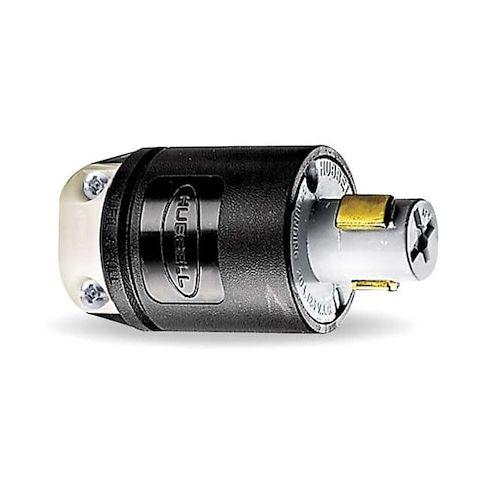

The HUBBELL 20A Hospital Locking Plug is a hospital grade, non-NEMA locking plug intended for use in environments requiring locking plug configurations. It features a nylon housing for impact and chemical resistance, with a three-wire, two-pole configuration rated for 125V AC and 20 amps. The plug uses screw terminals for wire connection and accommodates cord sizes from 0.300 to 0.650 inches in diameter.

Key Features of the HUBBELL - 20A Hospital Locking Plug:

• Current/Voltage Rating: Rated for 20 A at 125V AC single phase


• Grade: Hospital grade


• Material: Nylon housing


• Cord Size Compatibility: Accepts cable diameters from 0.30 in to 0.65 in


• Wire Connection Type: Screw terminals with standard wiring style


• NEMA Configuration: Non-NEMA locking design, polarized, grounded


• Number of Poles/Wires/Blades: Two poles, three wires, three blades


• Connection Orientation: Straight entry design


• IP Rating: IP20 (protection against solid objects over 12mm)


• Standards Compliance: UL Listed product suitable for regulated installations
