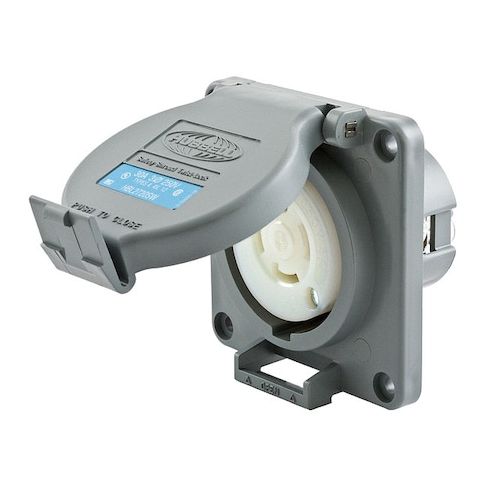

Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount MPN:HBL2720SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Twist-Lock Receptacle is a rugged and reliable solution for demanding environments, providing three-phase power at 250V AC with a 30A rating. Its watertight construction and IP69K rating ensure protection against water ingress, making it ideal for use in harsh weather conditions or areas with high humidity. Suitable for applications such as construction sites, industrial facilities, and outdoor events, this receptacle offers a secure and durable connection. Its flush mount design and locking cover provide added protection, making it a trusted choice for professionals who require a reliable and long-lasting power solution.
Top product features:
- Supports three-phase power at 250V AC, rated for up to 30 amps.
- Includes visual alignment indicators to assist with connection.
- Has a flanged locking mechanism for added protection and security.
Top product applications:
- Outdoor Applications
- Marine and Offshore Applications
- Industrial and Manufacturing Environments
The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle.
The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle rated IP69K for water ingress protection in demanding environments. It features a high-impact thermoplastic housing and includes visual alignment indicators to assist with connection. This device supports three-phase power at 250V AC, rated for up to 30 amps, and includes an additional cover included for added protection during use.
Key Features of the HUBBELL 30A Watertight Flanged Locking Receptacle:
- Amperage/Voltage: Rated for 30 A and 250V AC, suitable for three-phase applications
- NEMA Configuration: L15-30R with straight connection orientation
- Watertight Construction: IP69K rating
- Material & Build: Reinforced nylon housing
- brass contacts
- gray Valox flange
- clear polycarbonate retainer
- Cord/Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: -40°C to +75°C continuous operation without impact
- Mounting Type: Flush mount design with screw mounting hardware included
- Certifications & Standards: UL Listed, CSA Certified (Type 4, 4X, and Type 12 enclosures)
- Special Feature: Includes locking cover and shrouded construction for shrouded construction
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.80
- Package Height: 3.00
- Package Weight: 0.60
