Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MPN:IG5361

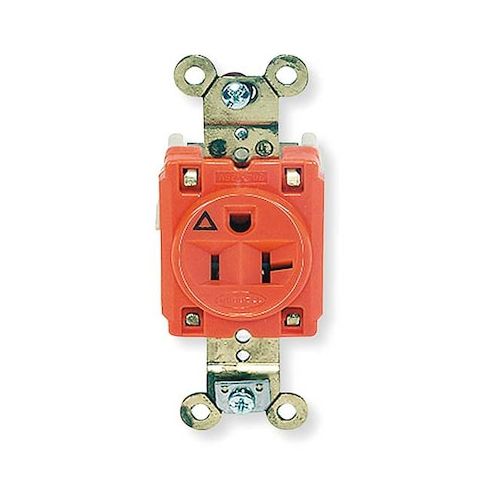

• The HUBBELL 5-20R Isolated Ground Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for commercial and industrial applications requiring specification grade performance, this receptacle features an isolated ground with isolated ground construction that separates grounding contacts from the mounting strap. The device accommodates both back and side wiring with screw terminals, accepts #14–#10 AWG copper conductors, and includes mounting hardware.





  Key Features of the HUBBELL 5-20R Isolated Ground Receptacle:





  • Isolated Ground: Insulation barrier construction separates ground contacts from the mounting strap
  • dedicated green grounding screw provided.


  • NEMA Configuration: 5-20R (2-pole, 3-wire grounding), polarized design.


  • Amperage/Voltage Rating: Rated for 20A at 125V AC
  • rated for current interrupting at full rated current.


  • Material Construction: Nylon face with reinforced PET base
  • nickel-plated brass contacts
  • steel-zinc plated mounting screws.


  • Wiring Method: Back or side wired using screw terminals
  • suitable for #14–#10 AWG copper stranded or solid wire only.


  • Operating Temperature Range: -40°C to +75°C (without impact).


  • Flammability Ratings: Top UL94 V-2, Base UL94 V-0 flammability classification.


  • Certifications & Standards: UL Listed to UL498 File E2186, CSA C22.2 No.42 File 285, Federal Specification W-C-596G, NEMA WD-6 compliant.
