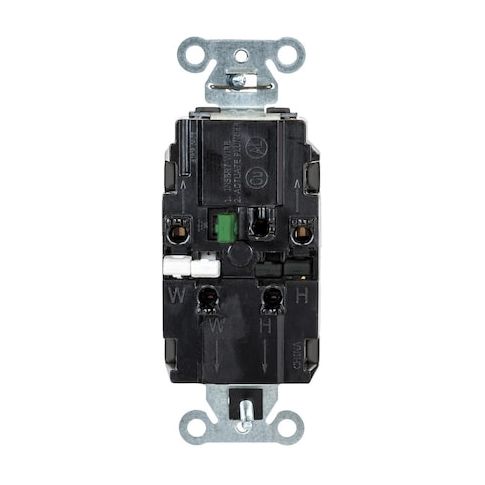

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:DR20STBK
Free Shipping
In Stock
The HUBBELL EdgeConnect Duplex Straight Blade Receptacle is a versatile and reliable electrical outlet designed for indoor use in dry locations. Featuring a screwless push-in wire termination system, it allows for easy and secure tool-free installation. With a 20A rating at 125V AC, it supports motor loads up to 1 hp, making it ideal for residential and commercial applications. Tamper-resistant and grounded, this receptacle provides added safety and peace of mind. Its compact design and flexible wiring options make it suitable for a wide range of installations, from new construction to retrofit projects.
Top product features:
- Wire Connection Type: Push-in back wiring with screwless spring termination intended to maintain secure connections during installation.
- NEMA Configuration: 5-20R, suitable for standard single-phase power distribution.
- Tamper Resistant: Designed with resistance properties to help prevent unintended access or insertion into the slots.
Top product applications:
- Residential Construction
- Commercial Office Spaces
- Industrial Manufacturing Facilities
The HUBBELL EdgeConnect™ Duplex Straight Blade Receptacle is an electrical outlet rated for use in indoor, dry locations. It features a screwless push-in wire termination system compatible with tool-free installation.
Key Features of the HUBBELL EdgeConnect™ Duplex Straight Blade Receptacle:
- Wire Connection Type: Push-in back wiring with screwless spring termination intended to maintain secure connections during installation.
- NEMA Configuration: 5-20R, suitable for standard single-phase power distribution.
- Current/Voltage Rating: Rated for 20 A at 125V AC
- supports motor loads up to 1 hp.
- Tamper Resistant: Designed with resistance properties to help prevent unintended access or insertion into the slots.
- Grounded: Grounded configuration compatible with grounded circuits.
- Contact Material: Copper alloy contacts used in construction of device.
- Face Plate Dimensions: Height of 2.8 in and width of 1.6 in
- overall depth of 1.4 in
- mount hole center-to-center height is 3.3 in.
- Circuit Tab Access: Easy access split circuit tab enables flexible wiring options as needed by installers.
- Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186).
- Operating Temperature Range: Suitable for environments from -40°F to +167°F
- accepts wire sizes from #14 AWG to #10 AWG.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 8.90
- Package Height: 8.80
- Package Weight: 22.25
