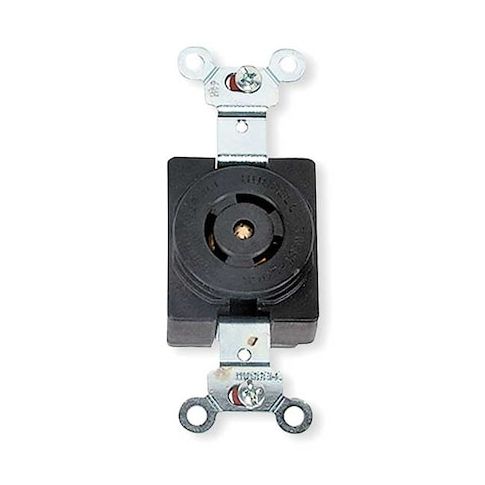

Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black MPN:HBL7582
Free Shipping
In Stock
The HUBBELL 15/10A Locking Receptacle is a reliable and durable electrical connection solution for indoor, dry locations. Ideal for use in industrial settings, this locking receptacle provides a secure and tamper-proof connection, ensuring the safety and integrity of electrical systems. With its 3-pole, 3-wire configuration and support for 125/250V AC, it meets a wide range of application needs, including commercial and industrial electrical connections, data centers, and more. Its corrosion-resistant construction and brass alloy contacts ensure long-lasting performance, making it a valuable addition to any electrical system.
Top product features:
- Amperage & Voltage: Rated for 10/15 A at 125/250V AC single phase operation.
- Contact Material: Brass alloy contacts provide reliable conductivity.
- Mounting Type: Flush mount design with included screw mounting hardware.
Top product applications:
- Industrial Electrical Panel
- Data Centers
- Commercial Construction Sites
The HUBBELL 15/10A Locking Receptacle is an industrial-grade device intended for electrical connections in indoor, dry locations. This locking receptacle features a 3-pole, 3-wire configuration and supports voltages of 125/250V AC with an amperage rating of 10/15A. It is constructed from thermoset materials
- includes corrosion-resistant components to enhance durability.
Key Features of the HUBBELL - 15/10A Locking Receptacle:
- Amperage & Voltage: Rated for 10/15 A at 125/250V AC single phase operation.
- Construction: Thermoset housing (phenolic) with black polyester base
- includes corrosion-resistant zinc plated steel mounting strap.
- Contact Material: Brass alloy contacts provide reliable conductivity.
- Mounting Type: Flush mount design with included screw mounting hardware.
- Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals
- terminals identified per UL498 standards.
- Operating Temperature Range: Maximum continuous temperature up to 75°C (167°F), minimum -40°C without impact.
- Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V
- flammability rated HB or better per UL94/CSA standards.
- NEMA Enclosure Rating & IP Rating: Suitable for use in NEMA type 12 and 4X enclosures
- IP20 rated when installed as specified by manufacturer guidelines.
- Certifications: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL498 standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 1.80
- Package Height: 1.60
- Package Weight: 0.20
