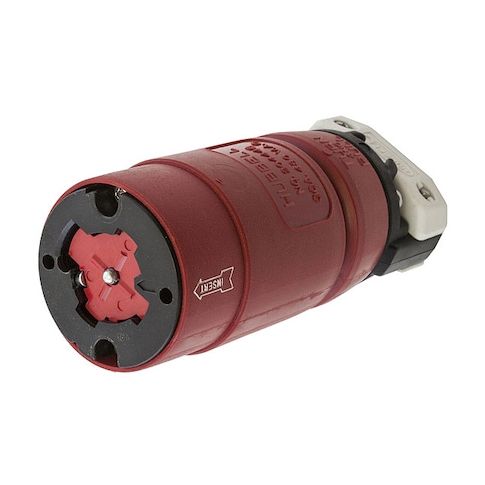

Locking Connector, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Red MPN:HBL20444B

• The HUBBELL 30A Locking Connector 3P 4W 480VAC RD is a locking connector rated for use in specified environments. It features a non-NEMA configuration, supports three poles and four wires, and is rated for up to 30 amps at 480V AC. The connector body is constructed from impact-resistant nylon with an insulated interior, intended for indoor dry locations as specified by manufacturer.





  Key Features of the HUBBELL 30A Locking Connector:





  • Amperage/Voltage: Rated for 30 A and 480V AC


  • Poles/Wires: Three-pole, four-wire configuration


  • Cable Range: Accepts cables from 0.70" to 1.20" diameter
  • accommodates #10 AWG to #6 AWG stranded copper wire


  • Body Material: Impact-resistant black Rynite housing with thermoplastic interior


  • Contact Material: Bronze contacts integrated into the nose


  • Screw Terminals: Box terminals with pressure pads designed to maintain connection integrity


  • Strain Relief: Three-piece clamp assembly designed to help limit strain on cables and reduce exposure to moisture and dust


  • Spring-Loaded Safety Shutter: Present
  • plug ejection feature activates upon disengagement during connection/disconnection under load


  • Flame Resistance & Temperature Rating: UL94 HB flammability rating
  • operates between -40°C to +75°C (without impact)


  • Certain Standards Met: Certified to CSA C22.2 No.42 and listed to UL498 standards
  • IP30 rated for indoor use only
