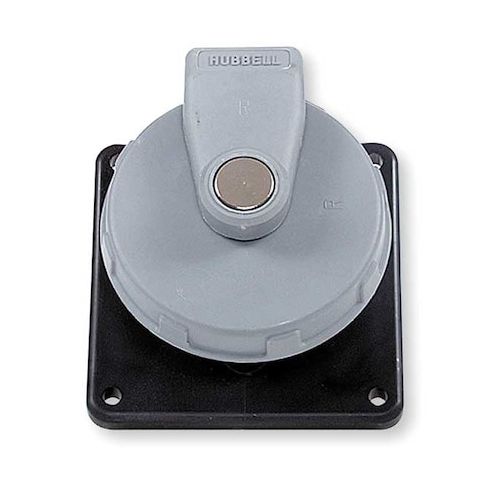

Watertight Pin & Sleeve Receptacle, 20 A, 600V AC, Single Phase, 3 Pole, IEC Grounding, Black MPN:HBL420R5W
Free Shipping
In Stock
For demanding industrial environments, the HUBBELL IEC Pin and Sleeve Receptacle provides secure power connections. With a rating of 20A and 600V AC, this watertight receptacle features a flanged design with a spring-loaded cap, supporting wire sizes from 14 to 10 AWG. The unit includes an IEC grounding system and meets various standards for safety and performance. Ideal for use in harsh conditions, this receptacle is suitable for applications such as outdoor equipment, heavy machinery, and industrial automation. Its durable construction and reliable performance make it an excellent choice for industries requiring high-quality electrical connections.
Top product features:
- IP67 rated and NEMA 4X classified enclosure provides protection against water and dust.
- The receptacle features a straight connection orientation with screw terminal wire connections, supporting wire sizes from 14 to 10 AWG.
- The unit includes a flanged design with a spring-loaded cap for secure power connections.
Top product applications:
- Industrial Control Panels
- Power Distribution Systems
- Marine and Offshore Applications
The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device designed for industrial use, providing secure power connections in demanding environments. Rated for 20A and 600V AC, this receptacle features a straight connection orientation with screw terminal wire connections, supporting wire sizes from 14 to 10 AWG. The unit includes a flanged design with a spring-loaded cap
- IP67 rated and NEMA 4X classified enclosure.
Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:
- Current/Voltage Rating: Rated for 20 amps at 600V AC
- Body Material: Zytel 101 nylon
- Operating Temperature Range: -40°C to 75°C
- Cord Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG
- Number of Poles/Wires: Three poles, four wires configuration
- Enclosure Ratings: IP67, NEMA Type 4X
- Grounding Style: IEC grounding system included
- Resistance Properties: Corrosion resistance per product specifications
- impact resistance per product specifications
- moisture resistance per product specifications
- IP67 rated construction
- Screw Material: Made with stainless steel screws for durability in harsh conditions
- Standards Compliance: Meets CSA C22.2 No.182.1, IEC 60309-2, UL E146032, UL IEC60309-1 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 4.10
- Package Height: 4.40
- Package Weight: 1.07
