Pin & Sleeve Plug, 100 A, 600V AC, Single Phase, 2 Pole, Style 2 Grounding, Gray, NEMA Not Rated MPN:HBL3100PS2W
Free Shipping
In Stock

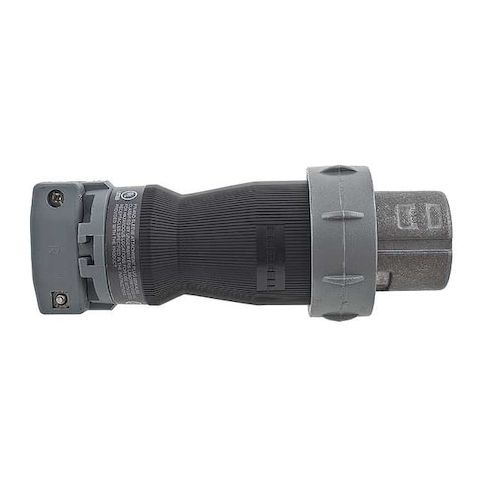

The HUBBELL Pin and Sleeve Plug is a rugged and reliable solution for electrical connections in harsh environments. Rated for 100A at 600V AC or 250V DC, this plug is designed for use in areas requiring protection against water ingress and corrosion, making it ideal for outdoor or industrial applications. Its durable Valox 357 housing and aluminum shroud provide long-lasting performance, while its pressure terminal screws ensure secure wire connections. Suitable for single-phase, grounded connections, this plug is CSA certified and UL listed, making it a trusted choice for a wide range of applications, from construction to manufacturing.
Top product features:
- Rated for 100 A at 600V AC or 250V DC
- Features pressure terminal screws designed to maintain wire connection integrity
- Has a non-metallic Valox 357 housing with aluminum shroud for protection against water ingress and corrosion
Top product applications:
- Outdoor Lighting Fixtures
- Industrial Machinery Controls
- Construction Equipment
The HUBBELL Pin and Sleeve Plug is a 2-pole, 3-wire device rated for 100A and up to 600VAC/250VDC. Designed with a combination of metallic shrouding and a non-metallic Valox 357 housing, this plug is rated UL Type 4X for use in environments requiring protection against water ingress and corrosion. It features pressure terminal screws designed to maintain wire connection integrity and is compatible with the Insulgrip series.
Key Features of the HUBBELL Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 100 A at 600V AC or 250V DC
- Construction: Valox 357 non-metallic housing with aluminum shroud
- composite material
- Cable Compatibility: Accepts #4 AWG to #2 AWG wire sizes
- cord mounted design fits cable diameters from 0.925 in to 1.94 in
- Environmental Resistance: Rated UL Type 4X, impact resistance per product specifications, moisture resistance as specified by manufacturer
- operating temperature range -40°C to +75°C
- Electrical Configuration: Single phase, grounded (Style 2), straight connection orientation
- Sleeve Contacts: All-brass sleeve contacts designed for consistent electrical connection
- Identification: Catalog number and rating are visible while in use
- permanent product identification on housing
- Standards Compliance: CSA Certified (C22.2 No.159), UL Listed Type 4X, meets UL Standards (1682, UL50, UL1010)
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.90
- Package Width: 5.60
- Package Height: 4.80
- Package Weight: 3.91
