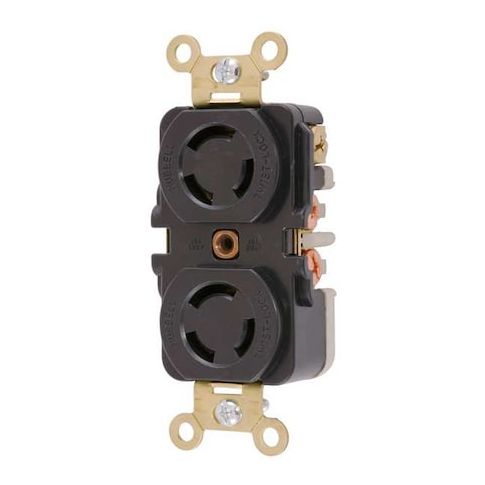

Duplex Locking Receptacle, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Black MPN:HBL7580

• The HUBBELL 15/10A Duplex Twist-Lock Receptacle is a locking receptacle rated for use in indoor, dry locations. This duplex unit features a reinforced thermoplastic housing and single piece brass contacts, supporting both 10A and 15A at 125/250V AC with a three-pole, three-wire configuration. The device includes break-off tabs for multiple installation options and mounting strap tabs that secures the body and base together.





  Key Features of the HUBBELL 15/10A Duplex Twist-Lock Receptacle:





  • Amperage & Voltage: Rated for 10/15 A at 125/250V AC


  • Construction: Reinforced thermoplastic (nylon) housing with all-brass contacts


  • Mounting Type: Flush mount design
  • includes mounting strap and screw hardware


  • Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Dielectric Strength: Withstands minimum of 2,000V


  • Flammability Rating: V-2 or better per UL94/CSA standards


  • NEMA Enclosure Ratings: Suitable for use in NEMA Type 12 and 4X enclosures when properly installed


  • Moisture Resistance & IP Rating: Moisture resistant
  • rated IP20 for indoor use unless additional protection is provided


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed to UL498
