Pin & Sleeve Receptacle, 60/63 A, - Phase, 3 Pole, NEMA 4X MPN:BB60N

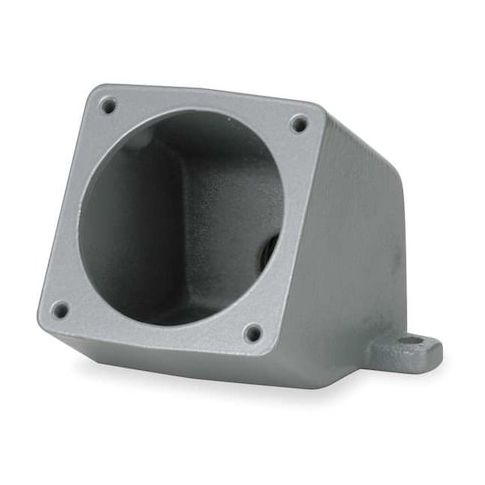

The HUBBELL Angl Back Box is a non-metallic, molded thermoplastic enclosure compatible with IEC 309 pin and sleeve devices. Rated for operation at 60 or 63 amps, this back box features a 15-degree angled feed-through design with a single 1-1/4" NPT hub entry, provides wiring space and suitability for surface mounting installations. It is rated IP67 and NEMA 4X.

Key Features of the HUBBELL Angl Back Box:

• Current Rating: Designed for use with devices rated at 60 or 63 amps


• Angle: Features a 15-degree angled style


• Material: Constructed from non-metallic thermoplastic for durability


• Cable Entry: Through hub (dead end) via a single 1-1/4" NPT knockout


• NEMA Enclosure Rating: Rated NEMA 4X for protection against water and corrosion


• IP Rating: Rated IP67 provides environmental moisture resistance


• Mount Type: Surface mount configuration accepts one device per box


• Standards Compliance: Meets UL Raintight and External Icing Test requirements


• Includes Mounting Screws for installation convenience
