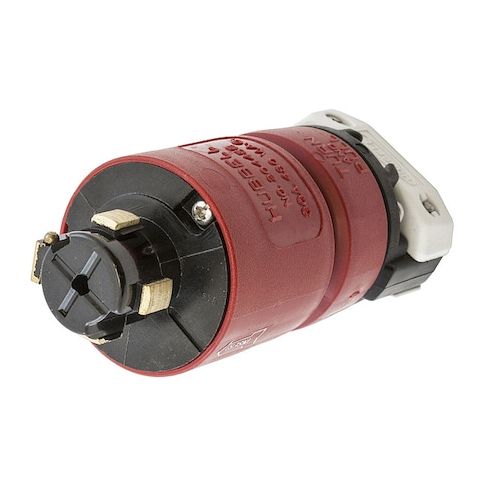

Locking Plug, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL20445B

• The HUBBELL 30A Locking Plug 3P 4W 480VAC RD is an industrial-grade locking plug intended for use in industrial environments requiring locking plug configurations. It features a nylon housing for impact resistance and uses screw terminals compatible with #10 AWG to #6 AWG stranded copper wire. Molded-in brass male contacts are integrated into the nose.





  Key Features of the HUBBELL - 30A Locking Plug:





  • Amperage/Voltage Rating: Rated for 30 A at 480V AC


  • Configuration: Non-NEMA, four blades
  • three poles, four wires
  • grounded


  • Cable Range: Accepts cables from 0.700" to 1.200" diameter


  • Wire Size Compatibility: Supports #10 AWG to #6 AWG stranded copper wire


  • Nylon body construction


  • Connection Type: Screw terminals with pressure pads enhance termination strength


  • Molded-In Contacts: Brass male contacts are integrated into the nose


  • Strain Relief: Three-piece clamp assembly designed to help limit strain, moisture, and dust entry at connection point


  • Operating Temperature Range: Suitable for continuous use from -40°C to +75°C (without impact)


  • Flammability Rating & Standards Compliance: UL94 V-0 flammability rating
  • CSA Certified
  • UL Listed
