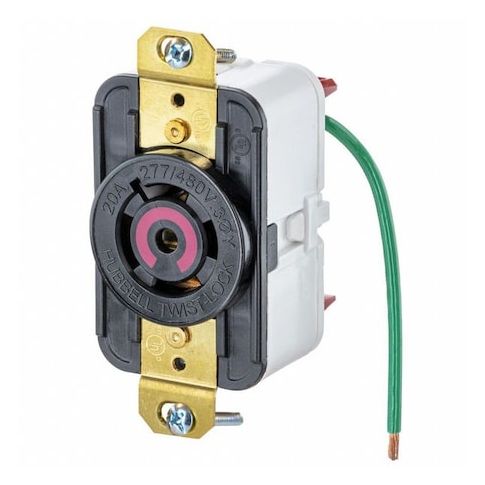

Locking Receptacle, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Black MPN:HBL2520ST
Free Shipping
In Stock
The HUBBELL Locking Receptacle is a reliable and versatile solution for commercial and industrial settings, providing a secure and efficient way to connect three-phase power. Suitable for use in a variety of applications, including data centers, hospitals, and manufacturing facilities, this receptacle features spring clamp terminals for easy wire termination and a nylon housing with color-coded face for voltage identification. Its impact-resistant construction and flush mount design make it a convenient and durable choice for indoor use, meeting UL 498 and CSA C22.2 standards for safety and quality.
Top product features:
- Spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches.
- The device has a nylon housing with color-coded face aids in voltage identification and device alignment.
- Brass contacts are used for conductivity.
Top product applications:
- Commercial settings such as offices, restaurants, and retail stores
- Industrial settings such as factories, warehouses, and manufacturing plants
- Outdoor events and festivals that require temporary electrical power distribution
The HUBBELL Locking Receptacle is a 20A, three-phase wye, 277/480V AC twist-lock receptacle suitable for use in commercial and industrial settings. It features spring clamp terminals allow wire termination without the use of screwdrivers or torque wrenches. The device has a nylon housing with color-coded face aids in voltage identification and device alignment.
Key Features of the HUBBELL Locking Receptacle:
- Amperage/Voltage: Rated for 20 A at 277/480V AC, three-phase
- NEMA Configuration: L22-20R
- polarized and grounded
- Wire Connection Type: Spring clamp terminals support solid (14–10 AWG) and stranded (14–8 AWG) wires
- Contact Material: Brass contacts used for conductivity
- Housing Material: Impact-resistant nylon construction with black finish
- Operating Temperature Range: -40°F to 167°F (-40°C to 75°C)
- Mount Type: Flush mount
- includes mounting strap and hardware
- NEMA Enclosure Rating/IP Rating: NEMA 1 / IP20 rated for indoor use
- Standards Compliance: Meets UL 498 and CSA C22.2 standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.50
- Package Height: 2.40
- Package Weight: 0.24
