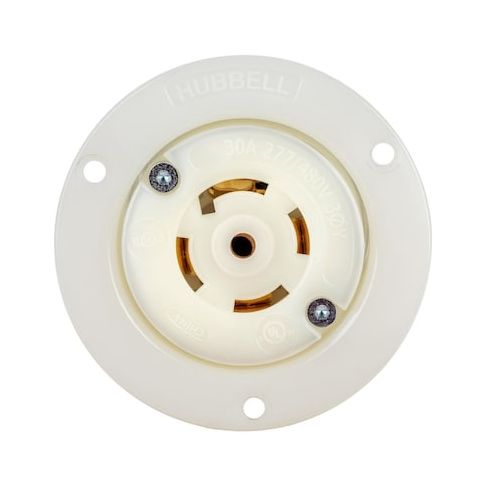

Locking Receptacle, L23-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, White MPN:HBL2826ST
Free Shipping
In Stock
The HUBBELL Locking Receptacle is a reliable and efficient solution for indoor electrical installations. Suitable for dry locations, this three-phase receptacle features an EdgeConnect screwless termination system and wire insertion mechanism for easy installation. Rated for 30 A, 277/480V AC, and accepting wire sizes from 8 AWG to 16 AWG, it's ideal for industrial settings where reliability and safety are paramount. With a temperature range of -40°F to 167°F and grounding and polarization features, this receptacle meets rigorous standards for CSA C22.2, Federal Specification W-C-596, and UL 498 compliance. Perfect for applications requiring secure and efficient electrical connections.
Top product features:
- Accepts wire sizes from 8 AWG to 16 AWG
- Features the EdgeConnect screwless termination system with wire insertion and plunger mechanism
- Brass contacts provide reliable conductivity
Top product applications:
- Industrial Settings
- Commercial Buildings
- Construction Sites
The HUBBELL Locking Receptacle is a straight, three-phase electrical receptacle suitable for dry, indoor locations. It features the EdgeConnect™ screwless termination system
- wire insertion and plunger mechanism.
Key Features of the HUBBELL Locking Receptacle:
- Connection: Straight orientation with standard wiring style
- NEMA Configuration: L23-30R
- rated for 30 A, 277/480V AC, three-phase
- Wire Capacity: Accepts wire sizes from 8 AWG to 16 AWG
- Termination System: EdgeConnect™ screwless design
- spring termination design
- Contact Material: Brass contacts provide reliable conductivity
- Housing Material: Impact-resistant nylon housing suitable for dry, indoor locations
- Temperature Range: Operates between -40°F and 167°F
- Grounding & Polarization: Grounded and polarized for proper circuit alignment
- Certain Standards Met: CSA C22.2, Federal Specification W-C-596, UL 498 compliance
- Includes Mounting Hardware
- shrouded design enhances installation suitability in industrial settings
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.20
- Package Height: 3.30
- Package Weight: 0.40
