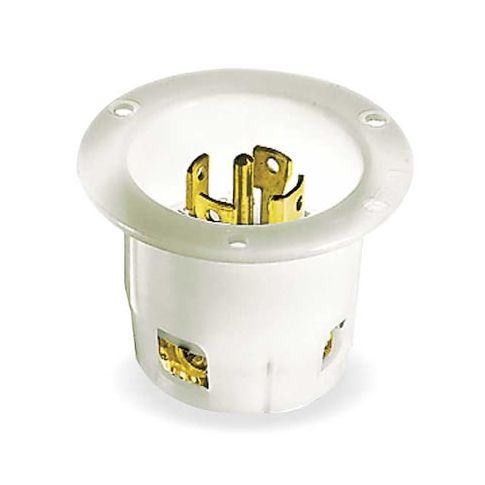

Flanged Locking Inlet, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals, White MPN:HBL2825
Free Shipping
In Stock
The HUBBELL 30A Flanged Twist-Lock Inlet is a reliable and secure solution for industrial environments, providing a 4-pole, 5-wire configuration and rated for 277/480V AC three-phase power at up to 30 amps. Its twist-lock mechanism ensures easy and secure connections, while the backwired terminations simplify installation. Suitable for indoor dry locations, this inlet is ideal for use in industrial settings, such as machine shops, warehouses, and manufacturing facilities. Its high-quality construction and certifications make it a trusted choice for applications requiring reliable and safe electrical connections.
Top product features:
- Three-phase power is supported at up to 30 amps.
- A twist-lock mechanism is included for secure connection.
- Screw terminals are used for straightforward wire installation.
Top product applications:
- Industrial Electrical Panels
- Industrial control panels, switchgear, and motor control centers
- High-power equipment installations, such as data centers and server rooms
The HUBBELL 30A Flanged Twist-Lock Inlet (L22-30P WT) is a flanged locking inlet suitable for use in industrial environments. It features a twist-lock mechanism with a 4-pole, 5-wire configuration and is rated for 277/480V AC three-phase power at up to 30 amps. The device is constructed from thermoplastic materials and includes backwired terminations for straightforward installation.
Key Features of the HUBBELL 30A Flanged Twist-Lock Inlet:
- Amperage/Voltage: Rated for 30 A, 277/480V AC, three-phase use
- NEMA Configuration: L22-30P plug pattern
- compatible with L22-30R receptacles
- Construction: PBT housing and nylon flange
- insulated body
- Terminals: Accepts #8–#16 AWG solid or stranded copper wire
- screw terminals accept slotted, Phillips, or Robertson drivers
- Mounting Type: Flush mount design with included mounting screws/hardware
- Environmental Suitability: Intended for indoor dry locations
- IP20 rating
- Performance Ratings: Dielectric strength rated at minimum 2,000V
- certified current interrupting
- Standards Compliance: Certified to CSA C22.2 No.42, UL 498 listed, Federal Specification W-C-596 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.90
- Package Height: 4.20
- Package Weight: 0.33
