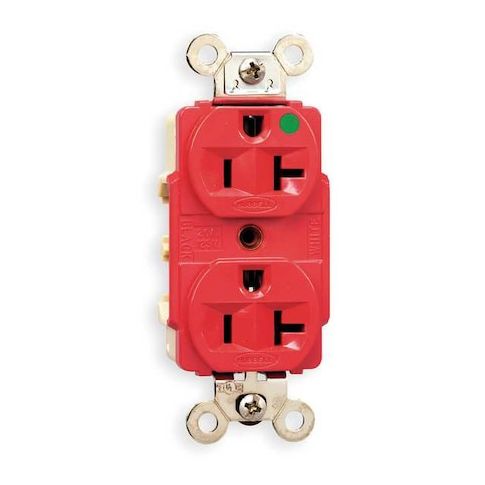

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300RED
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and durable solution for various commercial and institutional settings. Suitable for hospitals, offices, and other high-traffic areas, this traditional duplex receptacle features a flush mount design and supports both back and side wiring methods. Its hospital-grade rating ensures safe and efficient power distribution, while its nickel-plated brass bypass power contacts and four-point grounding system provide added protection. Perfect for installations requiring 20 amps at 125 volts AC, this receptacle is certified to meet UL, CSA, NEMA, and Federal Specifications, making it an ideal choice for a wide range of applications.
Top product features:
- Flush mount design
- Supports both back and side wiring methods with screw terminals
- Four-point grounding system included
Top product applications:
- Commercial and institutional settings
- Healthcare facilities
- Office buildings
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a hospital grade, traditional duplex receptacle suitable for installation in various commercial and institutional settings. It features a flush mount design and supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. This device is rated for 20 amps at 125 volts AC and complies with the following standards: UL, CSA, NEMA, and applicable Federal Specifications.
Key Features of the HUBBELL - 20A Duplex Receptacle 125VAC 5-20R RD:
- Amperage/Voltage: Rated for 20 A at 125 V AC
- NEMA Configuration: 5-20R (2-pole, 3-wire)
- Hospital Grade: Rated as hospital grade per relevant standards
- Contact Material: Features nickel-plated brass bypass power contacts
- Grounding System: Four-point grounding system included
- Impact Resistance: Deep face design constructed from thermoplastic polyester material
- Flammability Rating: UL94 V-0 rated materials
- Operating Temperature Range: Maximum continuous temperature of 75°C
- minimum -40°C (without impact)
- Circuit Interrupting Capability: Certified for current interrupting at full rated current
- Certain Accessories Included: Grounding clip and mounting hardware included
- wallplate or weatherproof cover compatible with duplex opening (not included unless specified)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.50
- Package Height: 4.10
- Package Weight: 0.25
