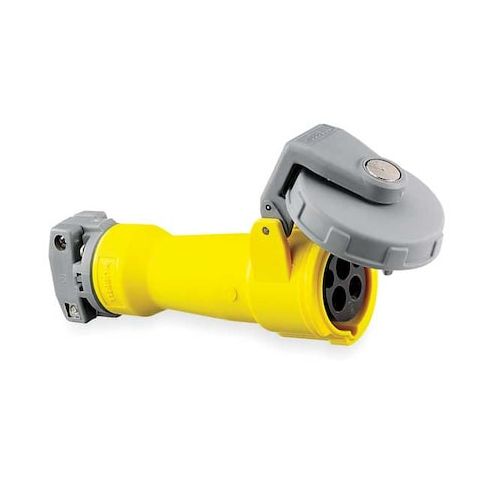

Watertight Pin & Sleeve Connector, 100 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Yellow MPN:M4100C12R

• The HUBBELL Pin and Sleeve Connector, 100A, 125/250V is a heavy-duty electrical connector suitable for use in marine and outdoor environments

• rated IP56 for moisture resistance. This pin & sleeve connector accommodates #3 AWG to #1/0 AWG conductors, features a grounded design with four wires and three poles, and operates at up to 100 amps with a voltage rating of 125/250V AC. The housing is constructed from high-visibility nylon with PBT components for added durability in demanding conditions.




  Key Features of the HUBBELL Pin & Sleeve Connector:





  • Current Rating: Rated for up to 100 A at 125/250V AC single-phase operation


  • Body Material: nylon insulated body with PBT housing features a nylon insulated body with PBT housing


  • Contact Material: nickel-plated solid brass pins


  • Cable Range: Accepts cable diameters from 1.065 in to 1.94 in
  • supports wire sizes #3 AWG to #1/0 AWG


  • Connection Type: pressure terminal screws (screw terminals) for secure wiring


  • Ingress Protection: IP56 rated for moisture resistance
  • includes neoprene sealing glands


  • Temperature Range: Operates between -40°C (minimum) and +75°C (maximum continuous)


  • Features: Gasketed locking ring, shrouded design, self-closing gasketed cover, color-coded housings for identification


  • Standards Compliance: CSA Certified LR280C
  • UL Classified to IEC 60309-1 / IEC 60309-2
  • UL E146033 listed
