Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2733
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2053676
Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

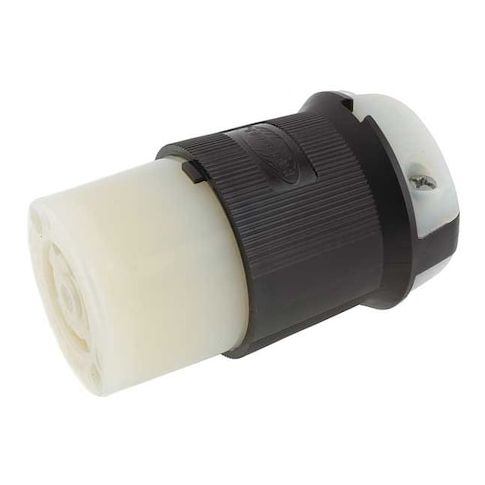

The HUBBELL 30A Twist-Lock Connector (L16-30R) is a locking connector intended for use in industrial and commercial electrical applications utilizing twist-lock connections. It features a ribbed nylon housing.
Key Features of the HUBBELL - 30A Twist-Lock Connector:
- Body/Housing Material: Nylon construction.
- Cord Size Compatibility: Accepts cords from 0.350 in to 1.150 in diameter.
- Contact Material: Brass contacts.
- Voltage/Current Rating: Rated for 480V AC and 30 amps
- maximum horsepower rating: 10 hp.
- Wire Accommodation: Accommodates wire sizes from 16 AWG to 8 AWG with screw terminals.
- NEMA Configuration: L16-30R
- three-pole, four-wire design with grounding feature.
- Operating Temperature Range: Operating temperature range: -40°C to +75°C max.
- Flame Resistance & Dielectric Strength: UL94 HB flammability rated
- dielectric strength: minimum 2,000V.
- Ingress Protection & Location Suitability: IP20 rated
- suitable for indoor use only in dry locations.
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 compliant connectors with terminals identified per UL498 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.50
- Package Height: 4.40
- Package Weight: 0.45
Product info last updated on June 5, 2026 2:29am UTC
Category: Wiring Devices
