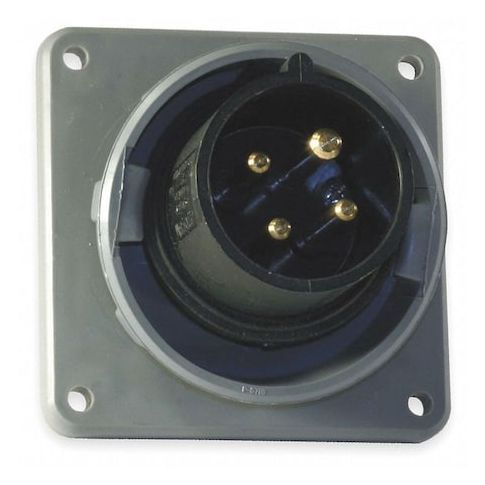

Watertight Pin & Sleeve Inlet, 20 A, 600V AC, Three Phase, 3 Pole, IEC Grounding, Black MPN:HBL420B5W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Inlet is a reliable and durable electrical inlet designed for use in demanding industrial settings. Rated for 20A and 600V AC, this three-phase device features a flanged design with screw terminal wire connections, supporting wire sizes from #14 AWG to #10 AWG. With a watertight construction and IP67 rating, it provides excellent moisture resistance and reliable performance in harsh environments. Suitable for applications up to 10 hp, this inlet is ideal for use in factories, warehouses, and other high-power industrial settings where reliability and safety are paramount.
Top product features:
- Rated for 20A and 600V AC, this three-phase device features a flanged design with screw terminal wire connections, supporting wire sizes from #14 AWG to #10 AWG.
- Constructed with Zytel 101 nylon housing and thermoset polyester contact carrier, providing a durable and reliable construction.
- Rated IP67 for protection against water ingress, making it suitable for demanding environments requiring moisture resistance and reliable performance.
Top product applications:
- Industrial control panels
- Heavy-duty machinery
- High-humidity environments
The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 20A and 600V AC, suitable for use in industrial settings. Rated for 20A and 600V AC, this three-phase device features a flanged design with screw terminal wire connections, supporting wire sizes from #14 AWG to #10 AWG. Constructed with Zytel 101 nylon housing and thermoset polyester contact carrier
- rated IP67 for protection against water ingress. It is suitable for demanding environments requiring moisture resistance and reliable performance.
Key Features of the HUBBELL IEC Pin and Sleeve Inlet:
- Current/Voltage Rating: 20 A, 600V AC
- three-phase configuration
- IP67 rated enclosure (omit "Watertight Construction" as a heading)
- Material: Housing made from Zytel 101 nylon
- gasket material is neoprene
- Cord Size Compatibility: Accepts #14 to #10 AWG wires via pressure terminal screws
- Rated operating temperature range: -40°C to 75°C (continuous)
- Flange Type: Flanged mounting with face diameter of 2.11 in and flange diameter of 2.72 in
- Grounding Style: IEC grounding
- shrouded design per IEC standard requirements
- Standards Compliance: CSA Certified (File LR280C), UL Listed (File E146032), classified under IEC 60309-1 & -2 standards
- Horsepower Rating: Rated up to 10 hp applications
- switch rated for current interrupting at full load
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 4.80
- Package Height: 4.40
- Package Weight: 0.40
