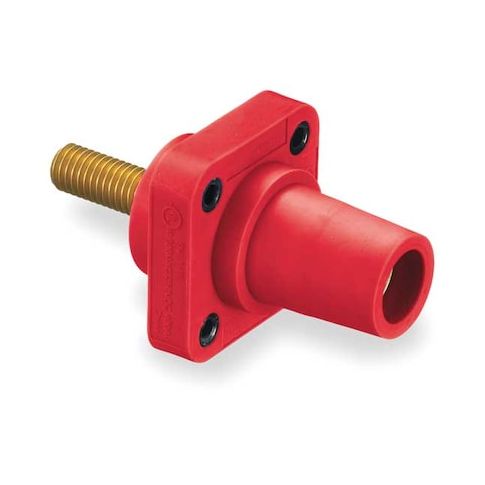

Recpt, Red, Female, Threaded Stud, 400 A MPN:HBLFRSR
Free Shipping
In Stock
The HUBBELL Series 16 Panel Mount Receptacle is a high-performance electrical connection solution for indoor applications where additional protection is required. Rated for up to 400A at 600V AC or 250V DC, this single-pole receptacle accommodates wire sizes from #4 AWG to 4/0 AWG, making it ideal for demanding electrical connections. The thermoplastic elastomer housing and brass contacts provide reliable and durable performance, while the NEMA Enclosure Ratings of Types 3R, 4X, and 12K ensure compliance with industry standards. Suitable for a wide range of applications, including industrial control panels, data centers, and high-power electrical systems.
Top product features:
- Accepts wire sizes from #4 AWG to 4/0 AWG
- Rated for up to 400A at 600V AC or 250V DC
- Constructed with a thermoplastic elastomer housing and brass contacts
Top product applications:
- High ampacity electrical connections
- Heavy-duty industrial applications
- High-voltage DC power distribution systems
The HUBBELL Receptacle, Series 16, is a single pole panel mount receptacle rated for high ampacity electrical connections. This female stud-type device accommodates #4 AWG to 4/0 AWG wire sizes and is rated for up to 400A at 600V AC or 250V DC. Constructed with a thermoplastic elastomer housing and brass contacts, it is intended for indoor installation where additional protection may be required.
Key Features of the HUBBELL Series 16 Panel Mount Receptacle:
- Amperage Rating: Rated for up to 400A (AC/DC)
- Voltage Rating: Up to 600V AC / 250V DC
- Connection Type: Threaded stud terminal connection
- straight orientation
- Cable Accommodation: Accepts wire sizes from #4 AWG to 4/0 AWG
- Housing Material: Thermoplastic elastomer construction with brass conductor/contact material
- NEMA Enclosure Ratings: Types 3R, 4X, and 12K—panel mount design
- Mounting Style: Through hole mounting
- square flange shape
- Standards Compliance: ANSI/NFPA 70 (NEC), UL Listed, cUL Listed, UL Enclosure Types 3R/4X/12 compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.60
