Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2721
Free Shipping
In Stock

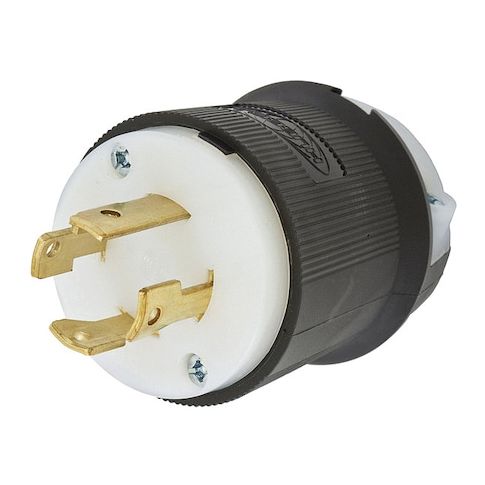

The HUBBELL 30A Twist-Lock Plug L15-30P is a reliable and durable locking plug designed for industrial electrical connections where a locking mechanism is required. Its three-phase, four-wire grounded design supports up to 30 amps at 250V AC, making it ideal for heavy-duty applications such as power tools, machinery, and equipment. The plug's polarized design with screw terminal wire connections ensures safe and secure connections. Suitable for use in a wide range of industries, including manufacturing, construction, and oil and gas, this plug provides peace of mind with its high-quality construction and compliance with CSA and UL standards.
Top product features:
- Three-phase, four-wire grounded
- Accepts cable diameters from 0.35 in to 1.15 in
- Maximum wire size of 8 AWG and minimum of 16 AWG
Top product applications:
- Industrial Electrical Connections
- Heavy-Duty Machinery
- High-Power Tools
The HUBBELL 30A Twist-Lock Plug (L15-30P) is a locking plug intended for use in industrial electrical connections where a locking mechanism is required. This three-phase, four-wire plug supports up to 30 amps at 250V AC and includes a polarized design with screw terminal wire connections. The housing is constructed from nylon housing.
Key Features of the HUBBELL 30A Twist-Lock Plug L15-30P:
- NEMA Configuration: L15-30P, three-pole, four-wire grounded
- Cord Size Compatibility: Accepts cable diameters from 0.35 in to 1.15 in
- maximum wire size of 8 AWG and minimum of 16 AWG
- Material Construction: Nylon housing with brass blades for durability
- Operating Temperature Range: -40°C to +75°C
- Flammability Rating: UL94 HB or better per CSA/UL standards
- Horsepower Rating: Maximum rating of 3 hp
- Chemical & Impact Resistance
- Standards Compliance: Meets CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 4.10
- Package Weight: 0.30
