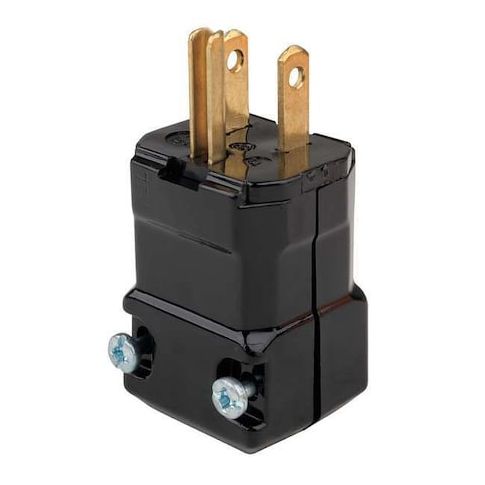

Straight Blade Plug, 5-15P, 15 A, 125V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL5965VBLK
Free Shipping
In Stock
The HUBBELL 3 Wire Commercial Straight Blade Plug is a versatile and reliable solution for industrial and commercial applications, rated for 15 amps and 125 volts AC. Suitable for use in dry environments, this plug features a hinged one-piece body design and screw terminals for easy wire connections. Its corrosion-resistant materials ensure long-lasting performance, and compliance with CSA, NEMA, and UL standards provides peace of mind. Ideal for applications such as lighting, HVAC, and manufacturing equipment, this plug accommodates cord sizes from 0.22 in to 0.66 in diameter, making it a convenient and efficient choice for a variety of settings.
Top product features:
- Amperage/Voltage Rating: Rated for 15 A, 125V AC
- NEMA Configuration: 2 poles, grounded
- Cord Clamp Material: Noryl (polyphenylene oxide) clamp holds individual conductors in place
Top product applications:
- Industrial applications
- Commercial applications
- Heavy-duty equipment
The HUBBELL 3 Wire Commercial Straight Blade Plug is a straight blade plug suitable for industrial and commercial applications, rated for 15 amps and 125 volts AC. It features a hinged one-piece body design that enables assembly, with screw terminals accommodate wire connections. The plug accommodates cord sizes from 0.22 in to 0.66 in diameter and supports wire sizes from #18 AWG to #12 AWG stranded copper wire.
Key Features of the HUBBELL 3 Wire Commercial Straight Blade Plug:
- Amperage/Voltage Rating: Rated for 15 A, 125V AC
- NEMA Configuration: 5-15P (2 poles, grounded)
- Body Material: Impact modified nylon housing with polycarbonate components
- Cord Clamp Material: Noryl (polyphenylene oxide) clamp holds individual conductors in place
- Connection Type: Screw terminals accommodate wire connections (#18–12 AWG stranded copper wires)
- Cable Diameter Range: Accepts cords from 0.22 in to 0.66 in diameter
- Corrosion Resistance: Constructed with materials rated as corrosion resistant per manufacturer specifications
- intended for use in dry environments.
- Dielectric Strength & Flammability: Rated up to 2000V per UL498
- flammability rating HB or better (UL94).
- Operating Temperature Range: -40°C to +75°C continuous operation without impact
- Standards Compliance: CSA Certified C22.2 No.42 File 280C, NEMA WD-6, UL Listed UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.60
- Package Height: 3.00
- Package Weight: 0.10
