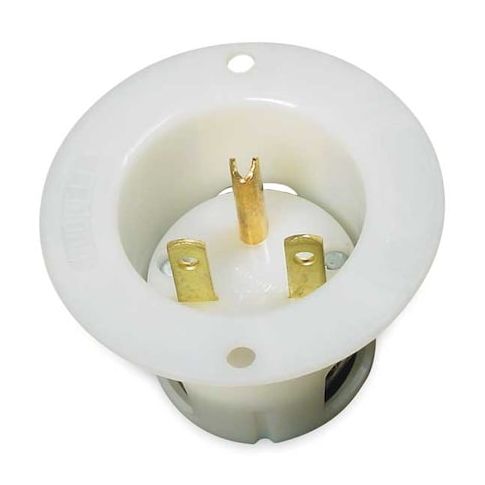

Straight Blade Inlet, 15 A, 250V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5678C

• The HUBBELL Flanged Inlet is a panel mount, single straight blade receptacle suitable for use in industrial applications. Rated for 15A and 250V AC, this inlet includes a round flange

• NEMA 6-15R configuration. It is housing made of thermoplastic materials and includes backwired terminations to accommodate #18-#10 AWG copper conductors. The device is equipped with screw terminals for grounding and comes with mounting screws for installation.




  Key Features of the HUBBELL Flanged Inlet:





  • Amperage/Voltage: Rated for 15A, 250V AC


  • NEMA Configuration: 6-15R (2 pole, 3-wire grounding)


  • Construction: Nylon/polycarbonate housing
  • brass blades


  • Mounting Type: Panel mount with included mounting screws


  • Wire Connection: Backwired screw terminals suitable for #18–#10 AWG copper wire


  • Dielectric Strength: rated at 2,000V


  • Temperature Range: Operating temperature range: -40°C to +75°C


  • Certain Standards Met: UL Listed (E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant


  • No cover or surge/tamper/weather resistance features included
  • indoor dry use unless otherwise protected
