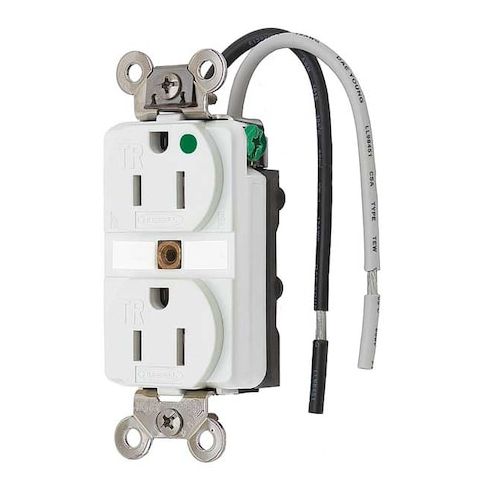

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200SGWA
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a heavy-duty, hospital-grade outlet designed for extra-heavy-duty use in various settings, including commercial, industrial, and healthcare environments. Its tamper-resistant contacts and integral wire leads facilitate easy installation, ensuring no exposed live parts when installed correctly. The device features a four-point grounding system, accommodating #12–#10 AWG copper wire, and is suitable for flush mounting. With its robust construction and reliable performance, this receptacle withstands dielectric voltage of at least 2,000V and is certified for current interrupting at full rated current, making it an ideal choice for applications requiring high reliability and safety.
Top product features:
- Tamper-resistant contacts limit access to the contact mechanism
- Four-point grounding system for secure grounding
- Integral wire leads and screw terminals support back or side wiring methods
Top product applications:
- Home Security Systems
- Office Buildings
- Hospitals
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex straight blade receptacle rated for extra heavy duty and hospital grade use. It features tamper-resistant contacts and integral wire leads to facilitate installation
- no exposed live parts when installed as specified. The device is constructed from thermoplastic housing with nickel-plated brass contacts and includes a four-point grounding system.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A, 125 VAC operation
- NEMA Configuration: 5-15R, standard duplex outlet type
- Tamper Resistant: Contact mechanism is designed to limit access
- Grounding: Four-point grounded design
- accommodates #12–#10 AWG copper wire
- Wire Connection Type: Integral wire leads and screw terminals support back or side wiring methods
- Material Construction: Thermoplastic housing with nickel-plated brass contacts and one-piece ground strap
- Mounting Type: Flush mount
- includes mounting hardware and grounding clip
- Performance Ratings: Withstands dielectric voltage of at least 2,000V
- certified current interrupting at full rated current
- UL94V-0 & UL94-5VA flammability rating
- IP20 indoor suitability
- Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.90
- Package Height: 4.10
- Package Weight: 0.35
