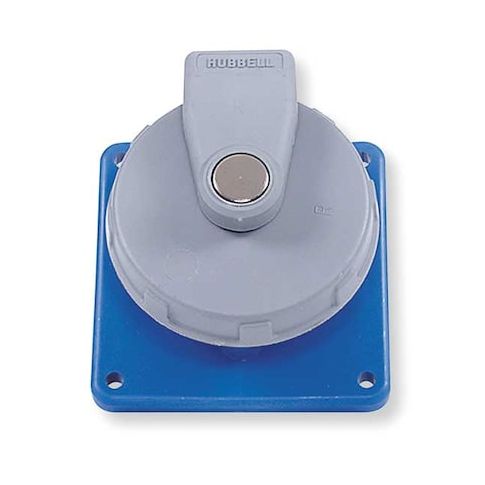

Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL420R9W

• The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for use in industrial settings where secure power connections are needed. Rated for 20A and 250V AC, this receptacle features a straight connection orientation with screw terminals, supporting wire sizes from 14 to 10 AWG. The product is constructed with a Zytel 101 nylon body and flange, thermoplastic housing, and high-impact thermoset retainer material to construct with materials that offer resistance to corrosion, impact, moisture, and water ingress.





  Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 20A at 250V AC
  • three-phase operation


  • IP67 rated enclosure with neoprene gasket and spring-loaded cap


  • NEMA Type 4X enclosure


  • Cord Accommodation: Accepts wire sizes from 14 to 10 AWG via screw terminals


  • Material Construction: Body/flange made of Zytel 101 nylon
  • insulated non-metallic housing


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • Resistance Properties: Designed to be corrosion resistant, impact resistant, and moisture resistant


  • Color Coded Housing: Blue color coding aids in device identification per IEC standards


  • Standards Compliance: CSA Certified C22.2 No.182.1
  • UL E146032
  • IEC 60309-1 & -2 compliant
