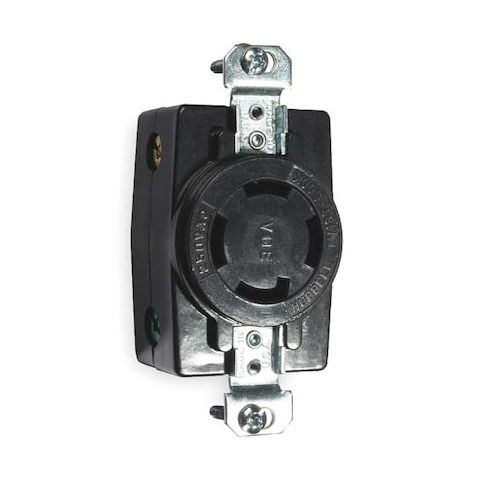

Locking Receptacle, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals MPN:HBL3430G
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle is a heavy-duty locking receptacle designed for industrial environments. Rated for 30 amps at 250V AC, it features a three-pole, four-wire configuration with grounding and polarization for added safety. The receptacle is constructed with durable nylon and brass materials, providing corrosion resistance and reliable performance. Suitable for use in dry locations, it can accommodate #16 AWG to #8 AWG copper wire and supports back and side wiring with screw terminals. Ideal for applications such as manufacturing facilities, warehouses, and construction sites, this receptacle ensures secure and efficient power distribution.
Top product features:
- Three-pole, four-wire configuration with grounding and polarization features.
- Supports both back and side wiring with screw terminals, accommodating #16 AWG to #8 AWG solid or stranded copper wire only.
- Flush mount design with included screw mounting hardware.
Top product applications:
- Industrial electrical panelboards
- Heavy-duty machinery installations
- High-security data centers and server rooms
The HUBBELL 30A Twist-Lock Receptacle is a locking receptacle rated for use in industrial environments. It features a three-pole, four-wire configuration and is rated for 250V AC and 30 amps. The device has a nylon face and housing, with color coding to assist in matching voltage requirements during installation.
Key Features of the HUBBELL 30A Twist-Lock Receptacle:
- Amperage/Voltage Rating: Rated for 30 A at 250V AC, suitable for heavy-duty industrial use.
- Configuration: Three poles, four wires
- includes grounding and polarization features.
- Material Construction: Nylon face and housing
- brass contacts and mounting system provide corrosion resistance.
- Wiring Options: Supports both back and side wiring with screw terminals
- accommodates #16 AWG to #8 AWG solid or stranded copper wire only.
- Mounting Type: Flush mount design with included screw mounting hardware
- non-flanged style.
- Operating Temperature Range: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.
- Coding & Identification: Face color coded by voltage
- terminal identifications per UL 498 standards.
- Certifications & Ratings: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL 498
- IP20 suitability for indoor dry locations unless otherwise protected.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.80
- Package Height: 1.60
- Package Weight: 0.30
