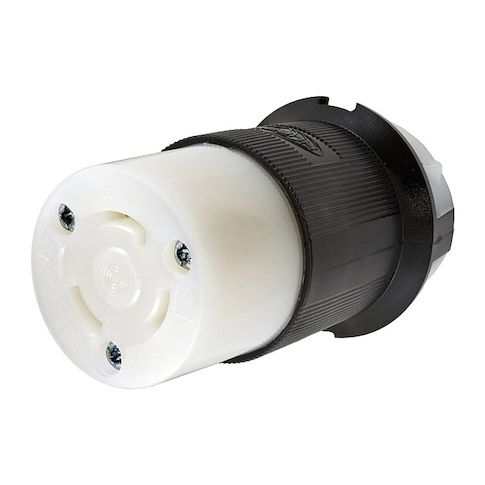

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2613

• The HUBBELL 30A Twist-Lock Connector (L5-30R) is a locking connector suitable for use in industrial and commercial electrical applications. It features a two-pole, three-wire configuration rated for 30 amps at 125V AC, with a straight connection orientation and screw terminal wiring style. The body is constructed from nylon

• intended for indoor dry locations.




  Key Features of the HUBBELL 30A Twist-Lock Connector:





  • Cord Grip Design: Designed to reduce strain on terminations.


  • Wire Entry: Funnel-shaped entry assists with wire termination.


  • Dust Shield: Integral shield provides a barrier against dust or contaminants entering the wiring chamber.


  • Cable Range: Accepts cord diameters from 0.360 in to 0.930 in
  • accommodates #16 AWG to #8 AWG stranded copper wire only.


  • Material Construction: Housing made of natural white nylon with brass contacts
  • insulated body design enhances durability and performance.


  • Electrical Ratings: Rated for up to 30 A at 125V AC
  • withstands dielectric voltage of minimum 2,000V
  • maximum continuous operating temperature of 75°C, minimum -40°C without impact.


  • NEMA Configuration: L5-30R receptacle type with grounded design and standard wiring style.


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 standards.
