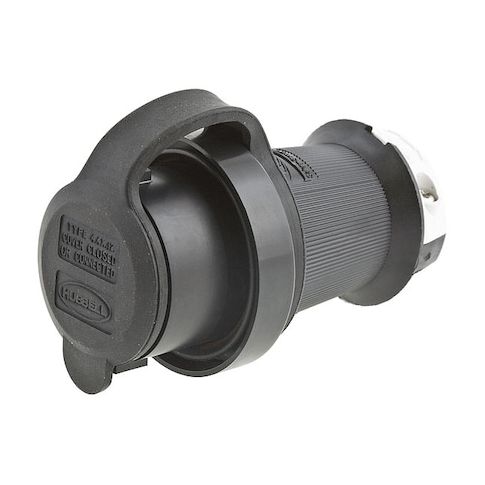

Watertight Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2621SW

• The HUBBELL 30A Watertight Twist-Lock Plug (L6-30P) is a shrouded, industrial-grade locking plug intended for use in industrial environments. It features a watertight construction with an impact-resistant shroud.





  Key Features of the HUBBELL 30A Watertight Locking Plug:





  • NEMA Configuration: L6-30P
  • rated for 250V AC single-phase at 30 amps


  • Poles/Wires: 2-pole, 3-wire configuration with grounded design


  • Cord Size Compatibility: Accepts cable diameters from 0.360 in to 0.930 in
  • wire size range from 16 AWG to 8 AWG


  • Material Construction: Housing made of impact-modified polybutylene terephthalate (PBT)
  • brass blade and contact materials
  • clear polycarbonate retainer
  • stainless steel screws


  • Resistance Properties: Rated IP66
  • chemical- and impact-resistant materials


  • Flammability Rating: UL94 V-0 housing material


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • Cable Strain Relief: Cord grip is designed to provide strain relief
  • rated IP66 for moisture and dust ingress protection.


  • Standards Compliance: CSA Certified Type 4 and UL Listed for industrial applications
